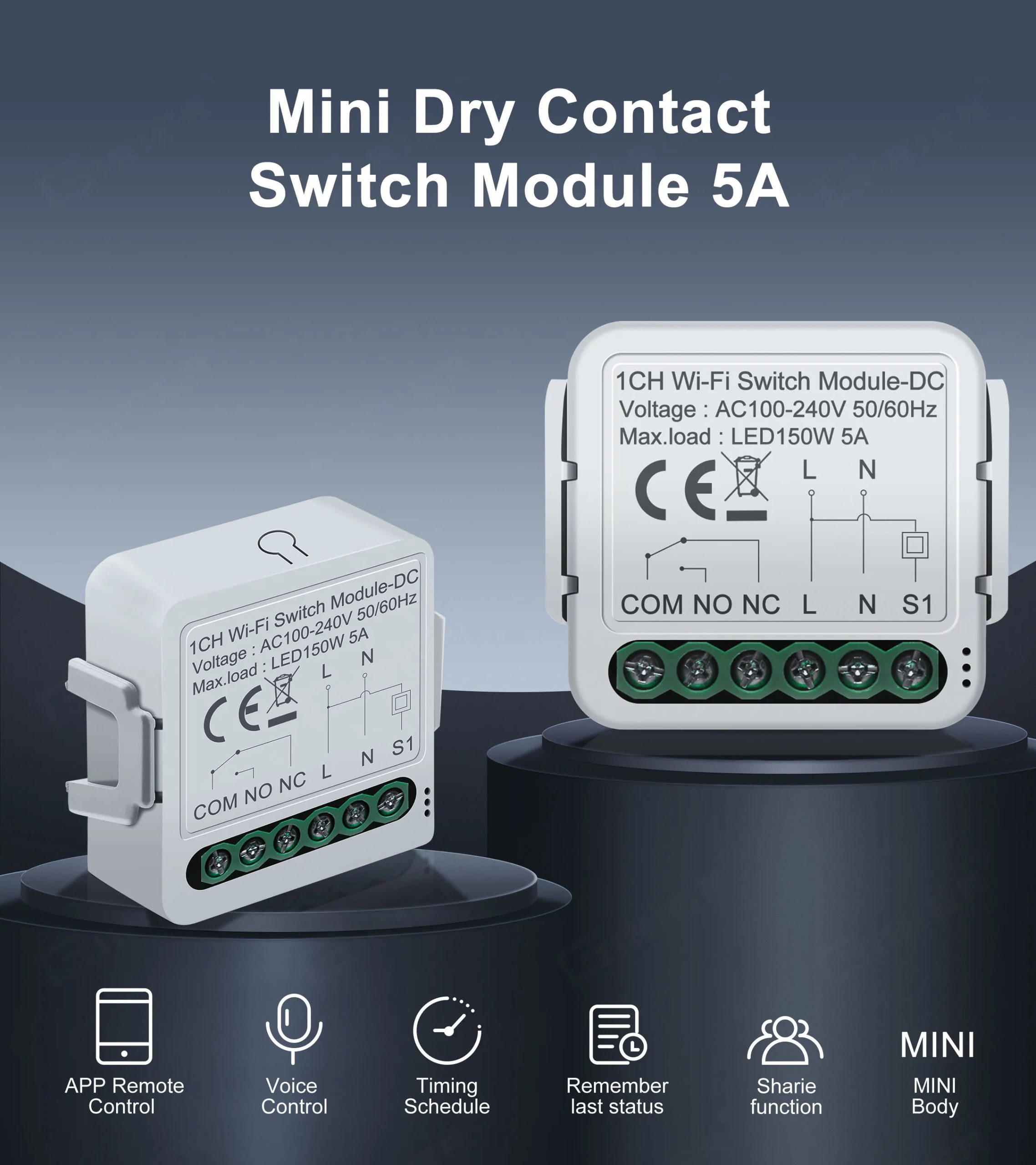

Smart Dry Contact WiFi Switch Module Smart Home DIY Breaker Relay DC 12/24V AC 100-240V Compatible with Alexa Google Home
$15.42$16.90 (-9%)
Relay, DC 12/24V AC 100-240V Works with Alexa Hey Google
Safe, Convenient, Better Home

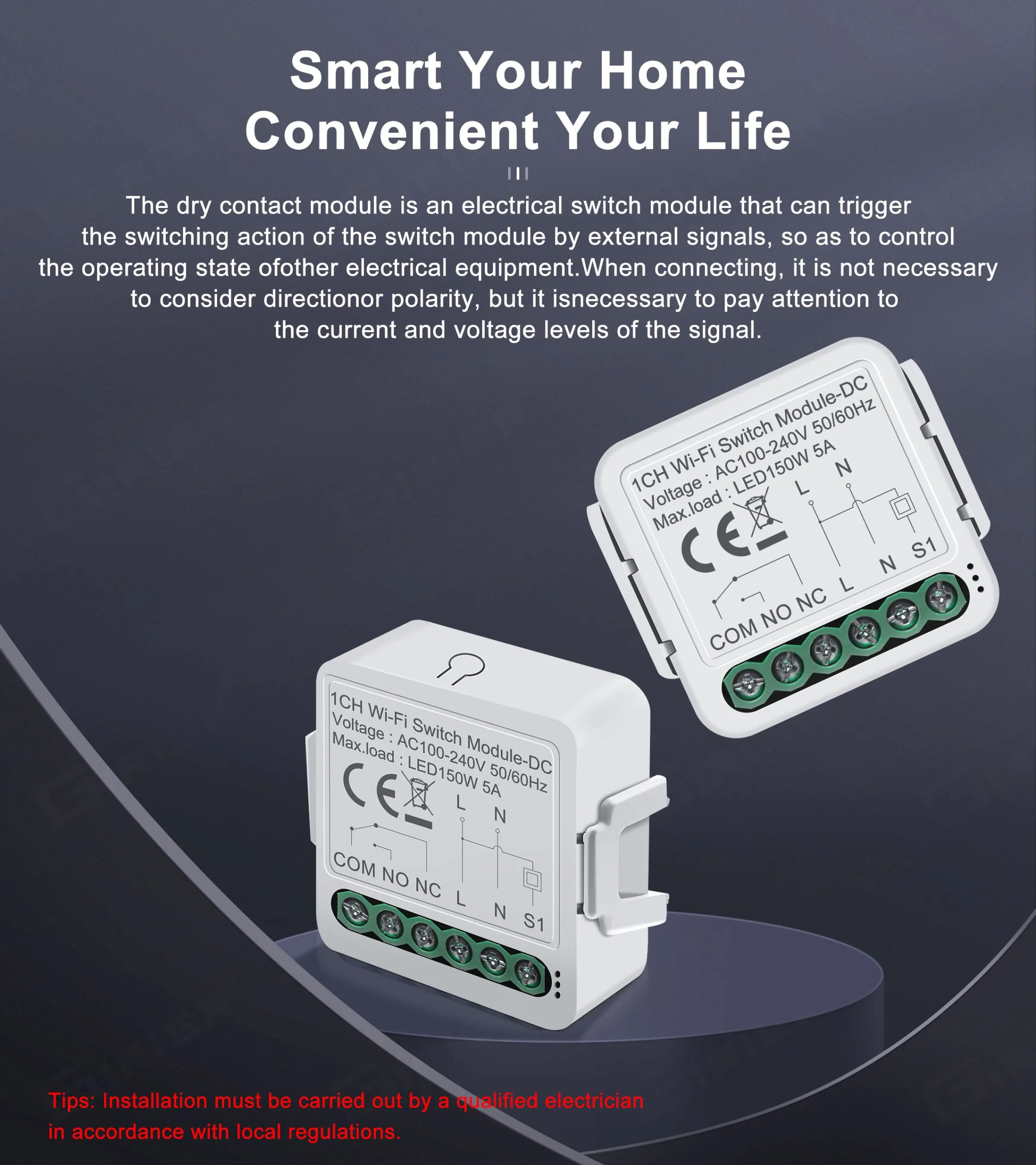

What’s Dry Contact Module?
The dry contact module is a versatile electrical switch that responds to external signals, controlling other electrical equipment. With no need to worry about directions or polarity during installation, simply ensure the correct signal current and voltage levels are maintained.
Why Choose Dry Contact Module?
Compatible with mechanical reset switch and rocker switch, suitable for various mounting boxes.
Works both low-voltage and high-voltage according to your different needs.
Neutral wire is required.

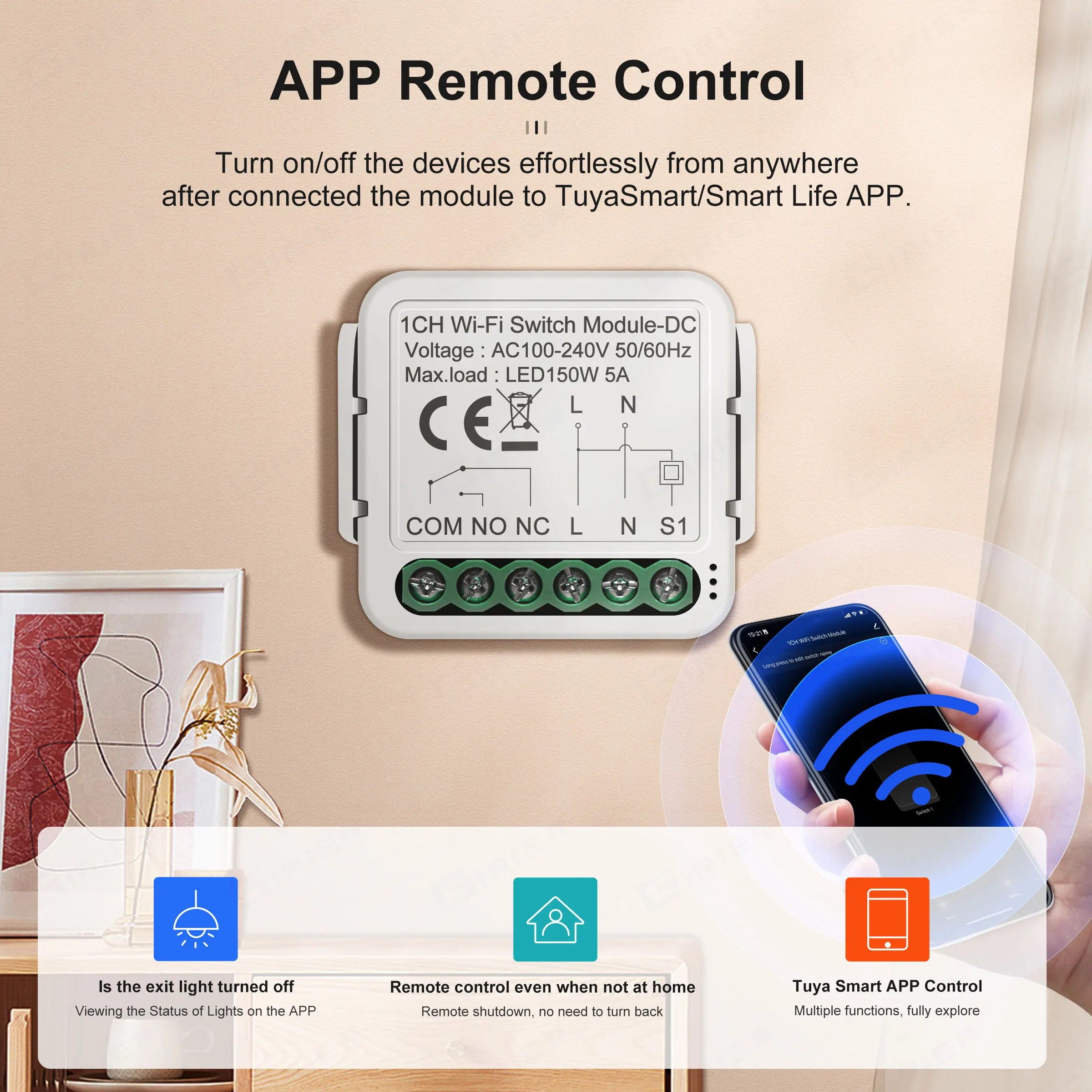

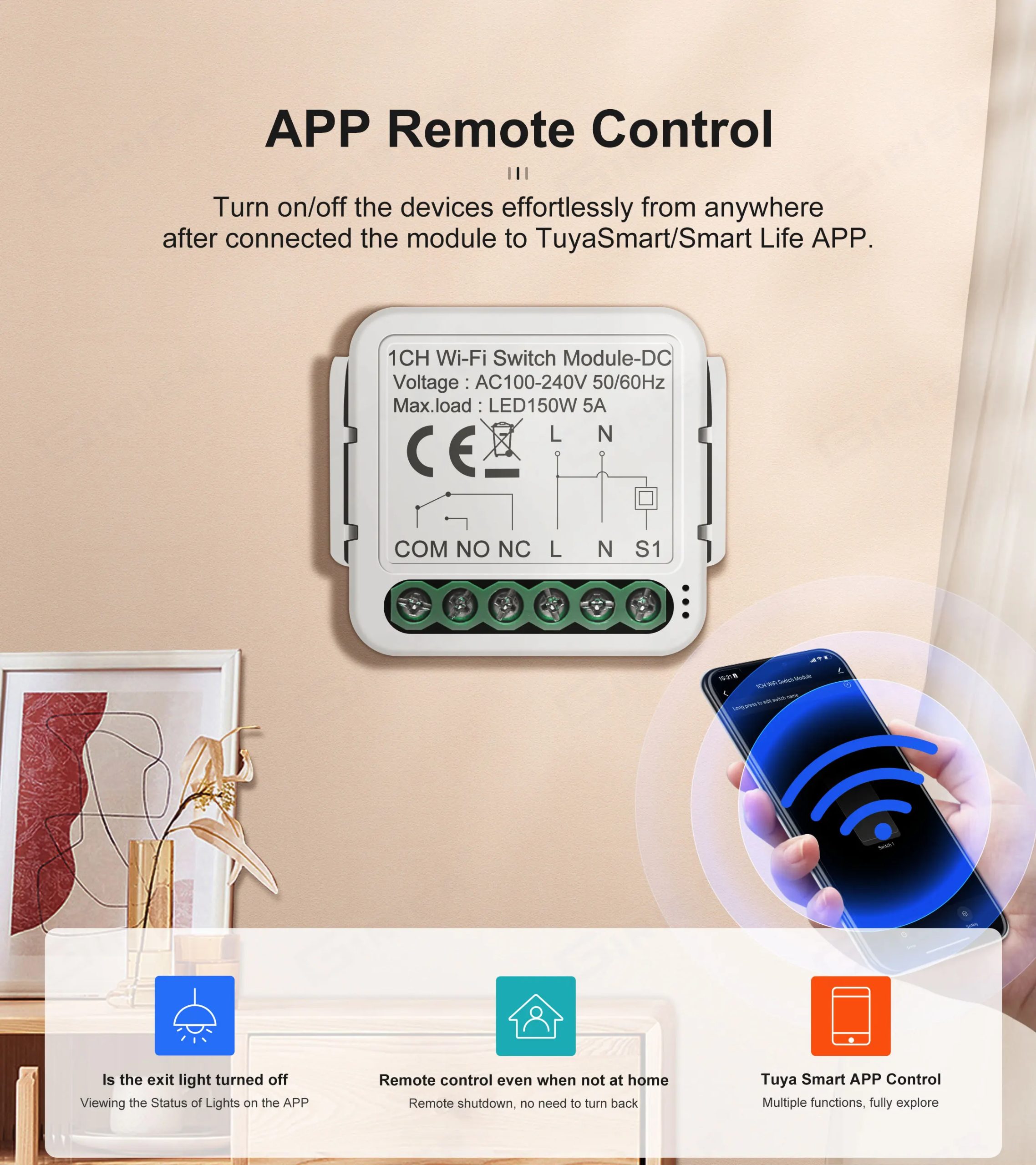

APP Remote Control
Turn on/off the devices effortlessly from anywhere after connected the module to TuyaSmart/Smart Life APP.

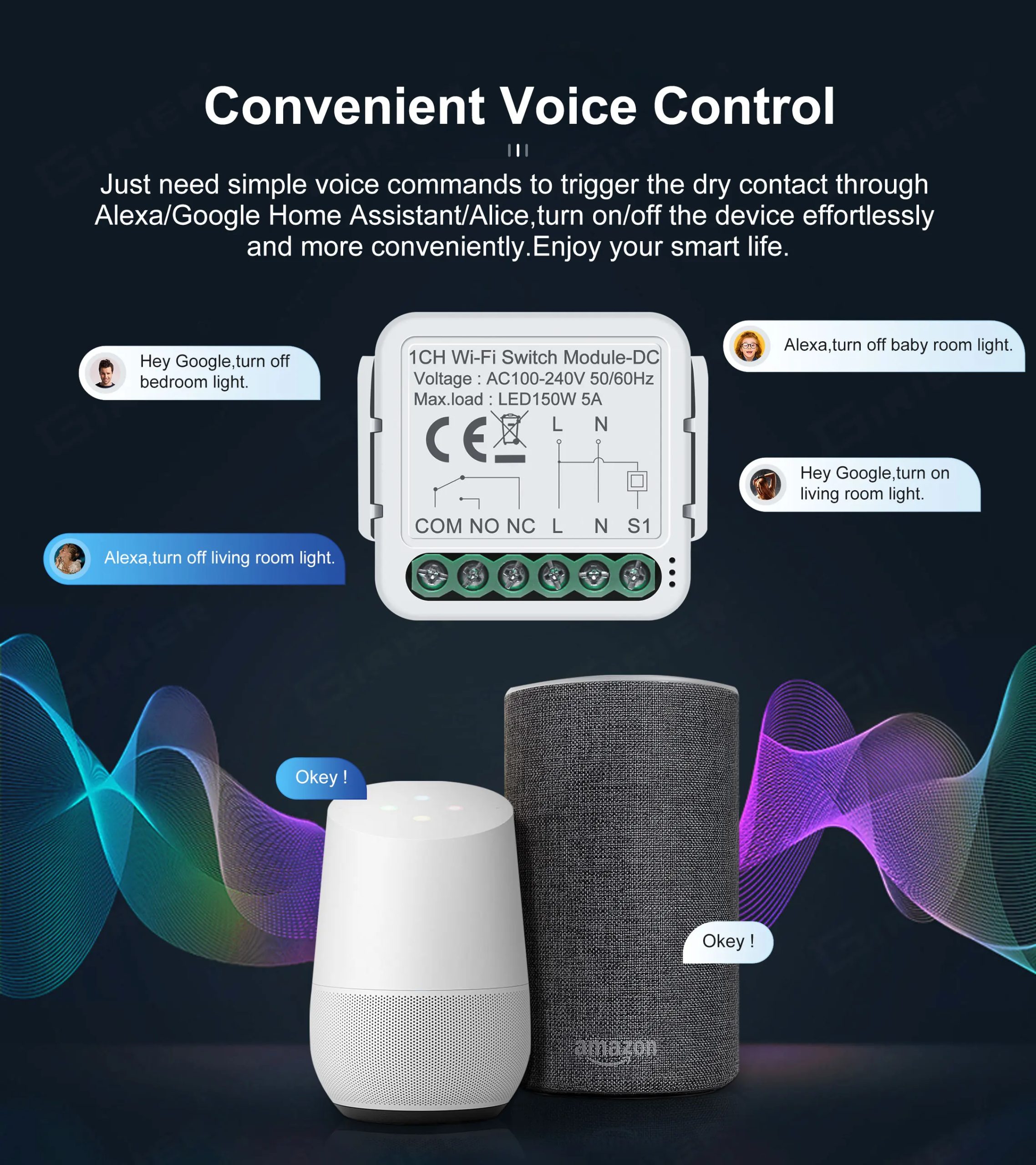

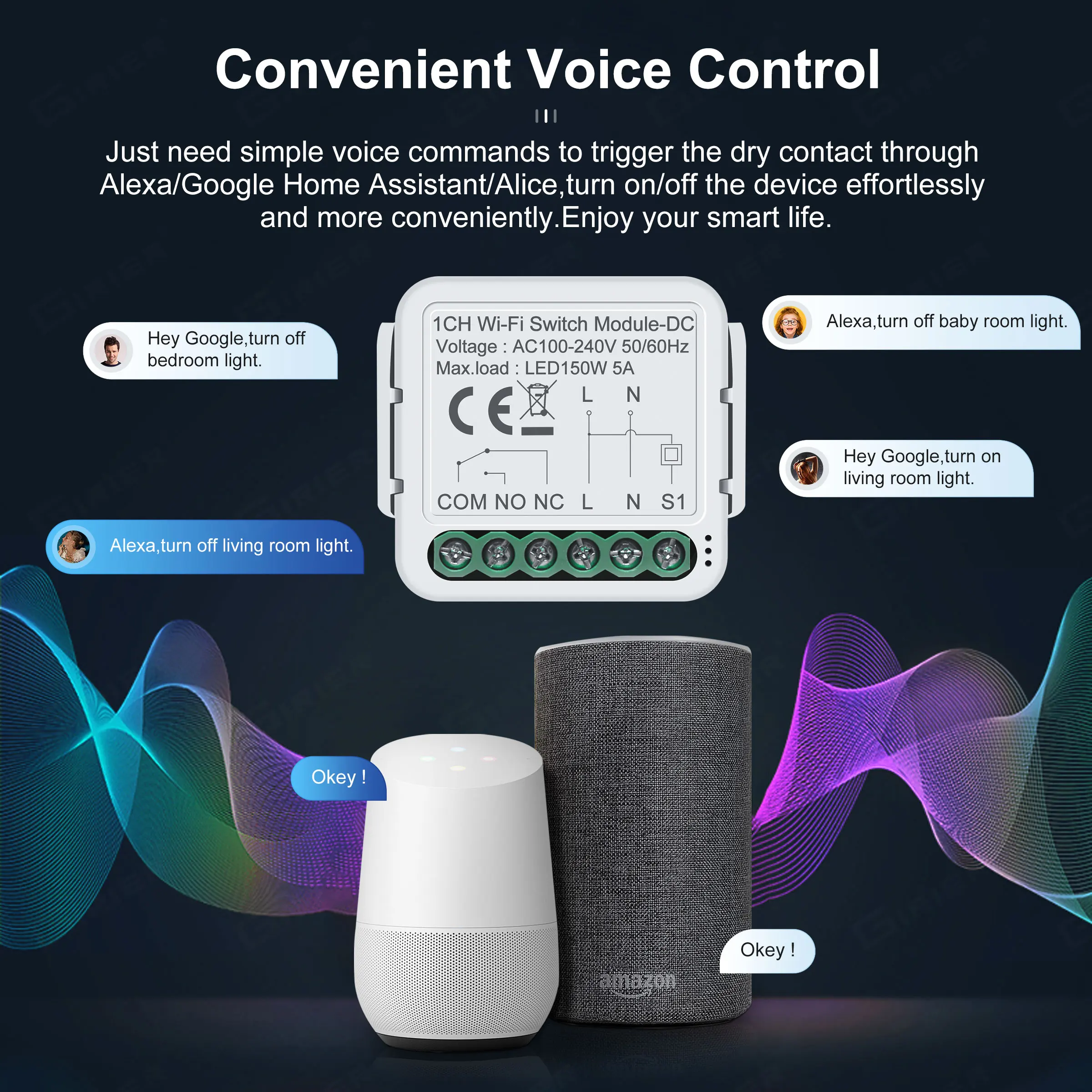

Convenient Voice Control
Just need simple voice commands to trigger the dry contact through Alexa/Google Home Assistant,turn on/off the device effortlessly and more conveniently. Enjoy your smart life.
Timer Schedule
With flexible timer setting, you can trigger connected devices on time while saving energy.

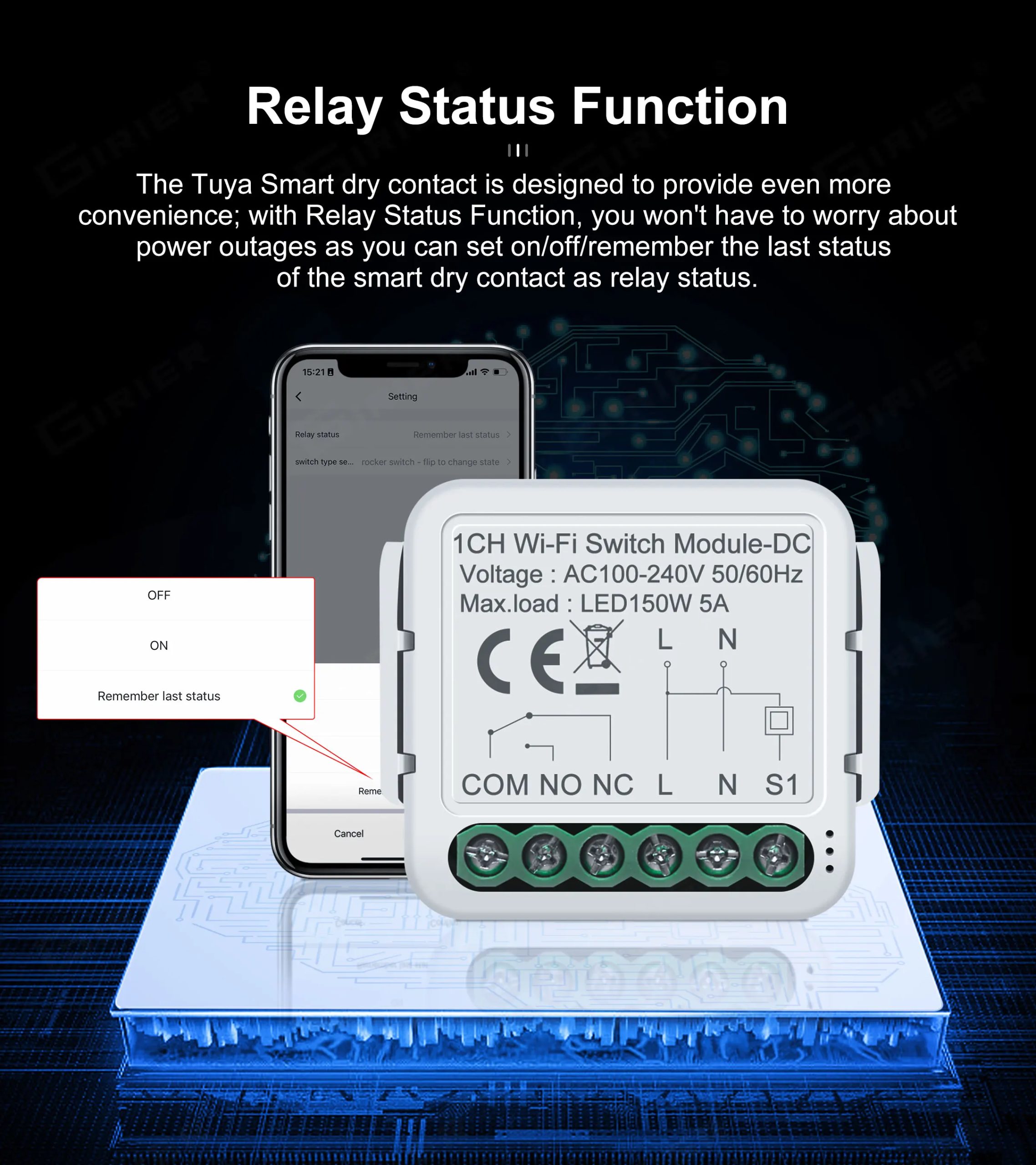

Relay Status Function
With Relay Status Function, you won’t have to worry about power outages as you can set on/off/remember the last status of the smart dry contact as relay status.
Professional Certificates
Trust in our professional certifications and high-quality products to provide peace of mind and ensure safety.
Sharing Function
Share the device to your family and friends,enjoying smart life together

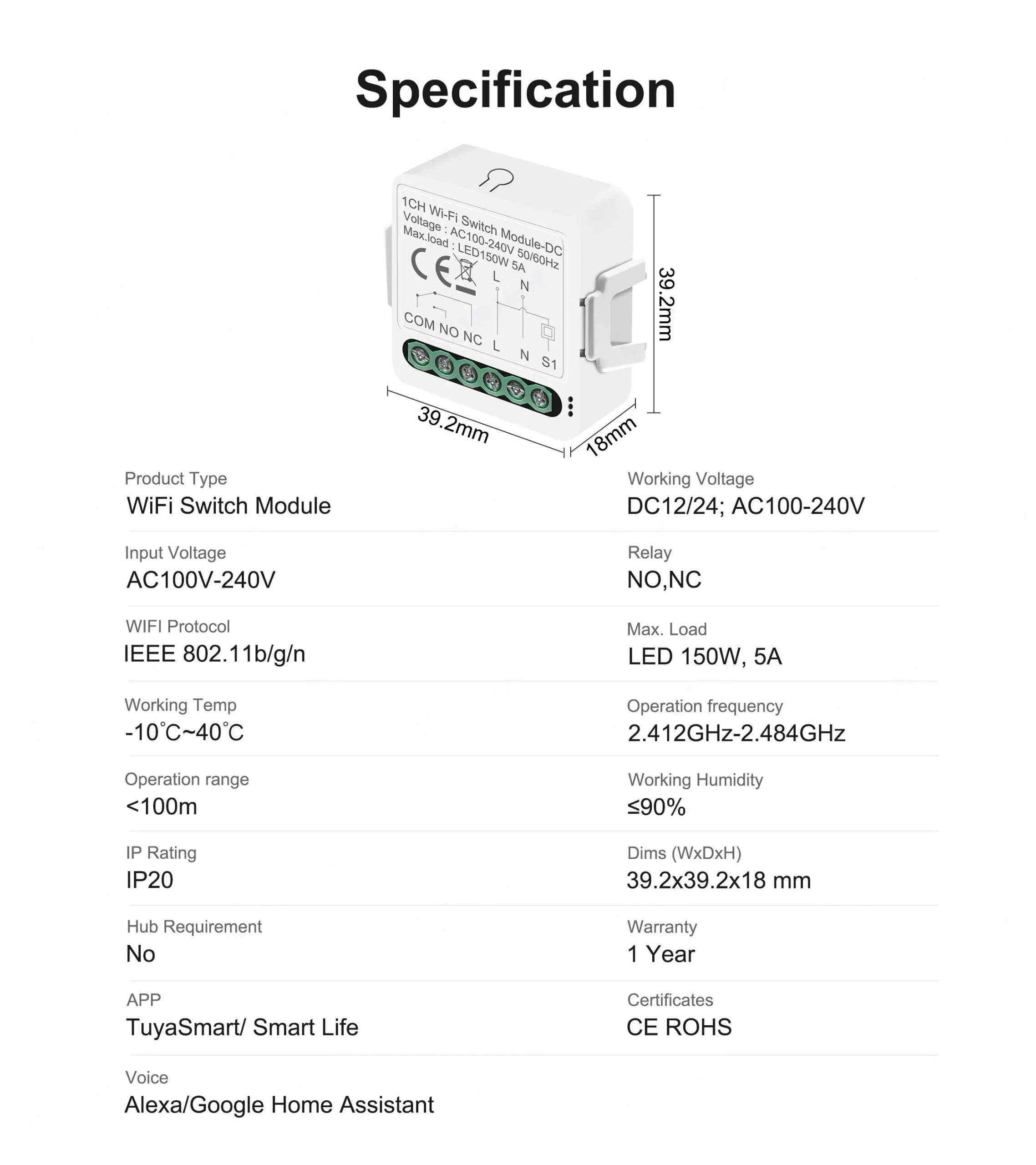

SPECIFICATION
Product Type: WiFi Switch Module
Relay: NO,NC
Inpute Voltage: AC100-240V
Working Voltage: AC100-240V 50/60Hz;DC12V/24V
Max. Load: LED 150W, 5A
Operation Temp.: -10℃~ +40℃
Working Humidity: ≤90%
WIFI Protocol : IEEE 802.11b/g/n
Operation Frequency: 2.412GHz-2.484GHz
Operation Range: <100m
Dims (WxDxH): 39.2×39.2×18 mm
IP Rating: IP20
Warranty: 1 year
Certificates: CE ROHS
APP: TuyaSmart/ Smart Life
Voice: Alexa/Google Home Assistant/Alice
Hub Requirement:No
Warm Tips:
1.The switch module terminal reserves the access of manual override function for the end-user to switch on/off. Switch on/off for permanent on/off function.
Notes:
1) Both the adjustment on App and switch can overwrite each other, the last adjustment remains in memory.
2) The App control is synchronized with the manual switch.
2.Installation must be carried out by a qualified electrician in accordance with local regulations.
3.If you choose Tuya ZigBee devices,please use Tuya ZigBee hub as a center.
4.If you have any question after you received the parcel ,please feel free to contact to our online after-sales,we will help you solve the problem.
5.The Input Voltage Only Supports AC100-240V.

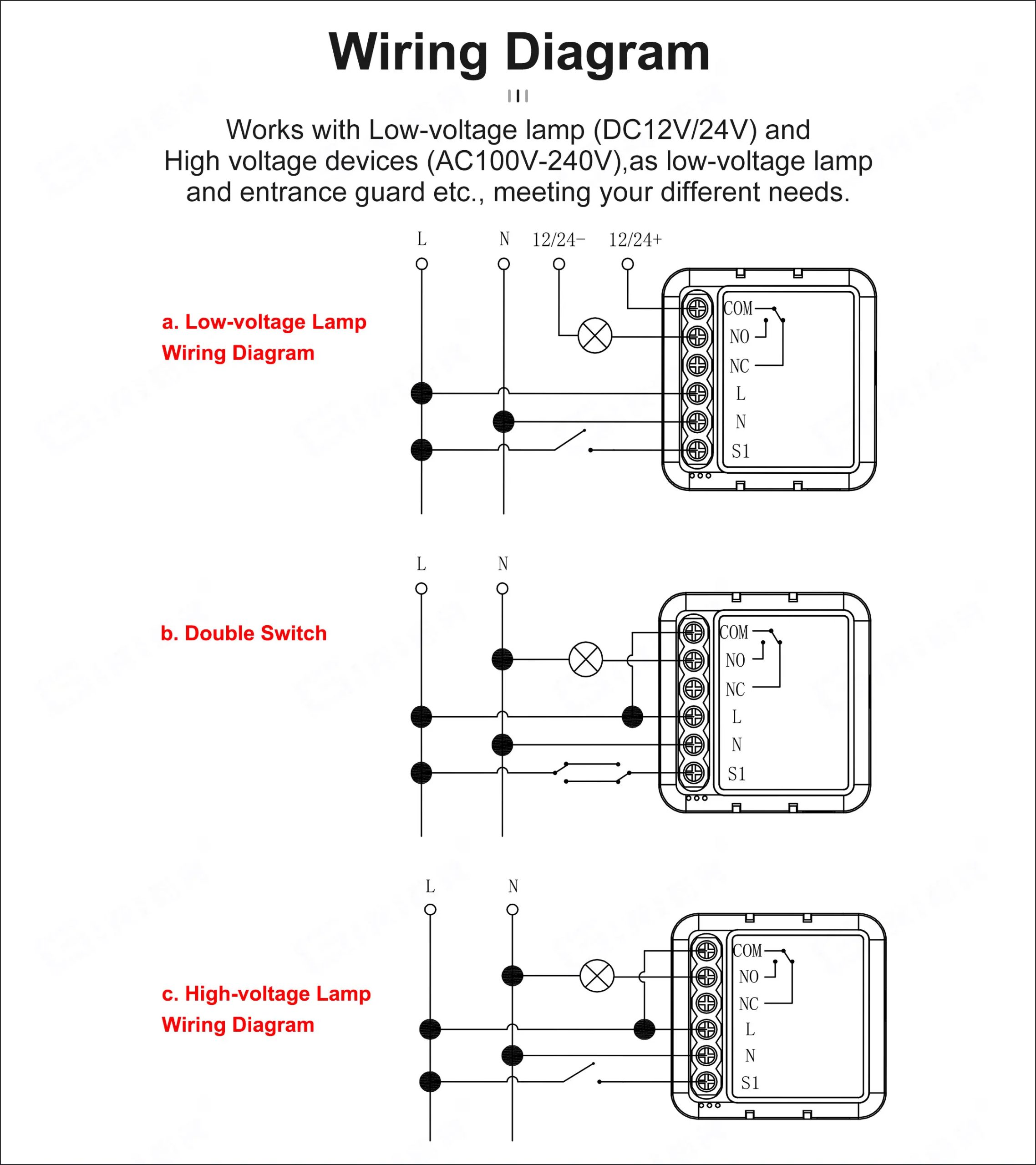

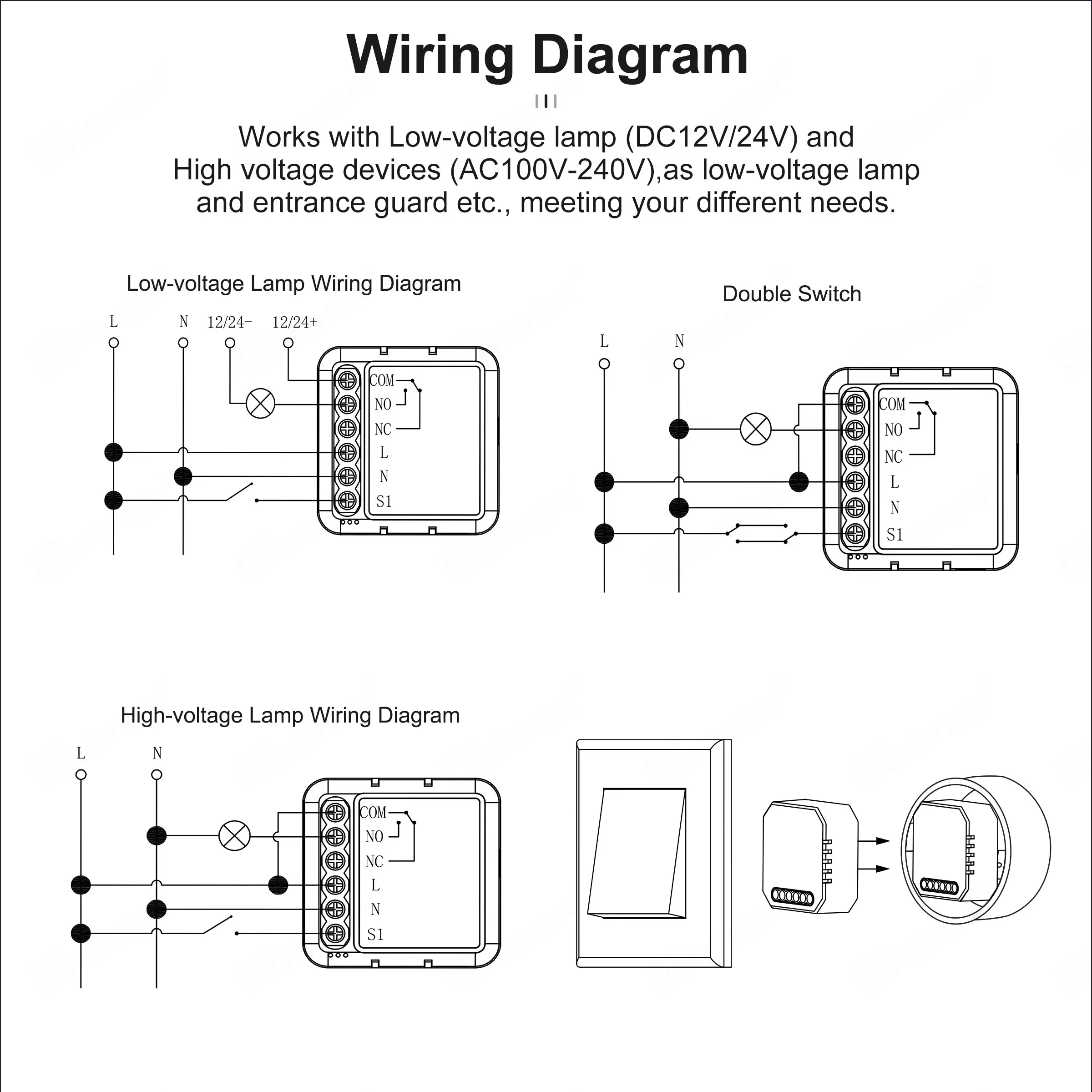

Wiring Diagram
The Supply Voltage Only Supports AC100-240V.

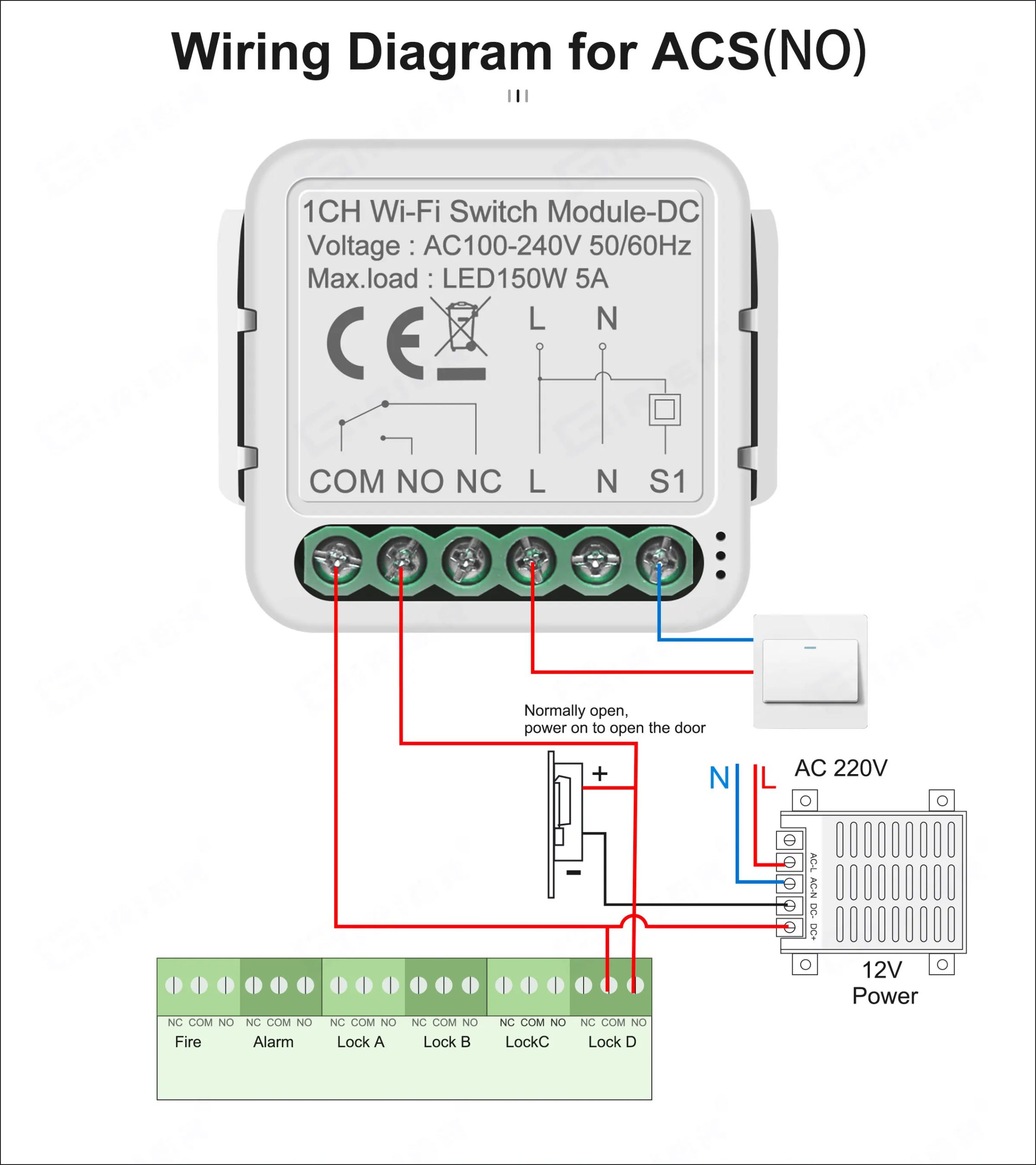

Please notice that the wiring is just for reference,the actual wiring diagram depends on your own access control system.

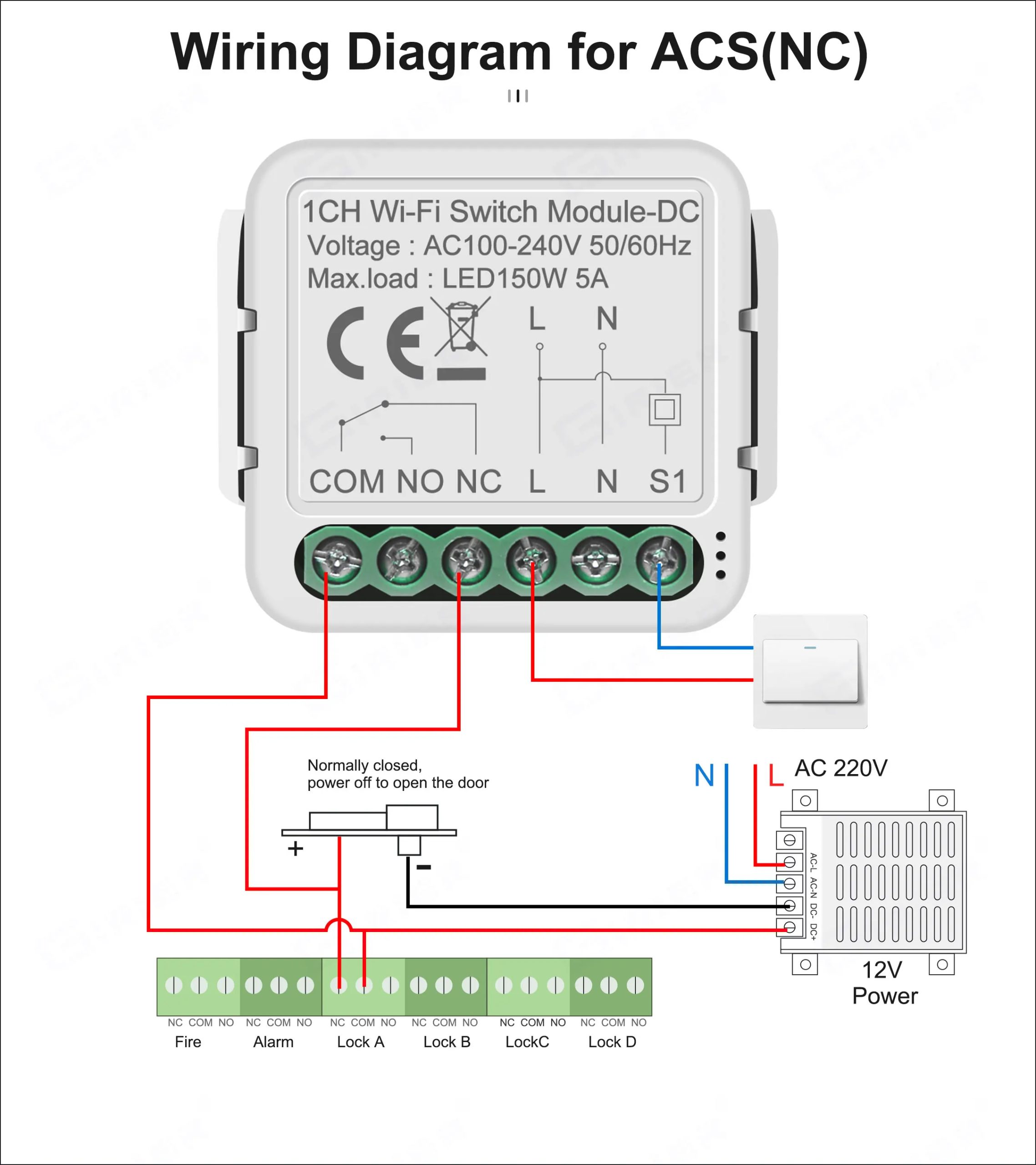

Wiring Diagram for Home Access Control System (NC)
Please notice that the wiring is just for reference,the actual wiring diagram depends on your own access control system.

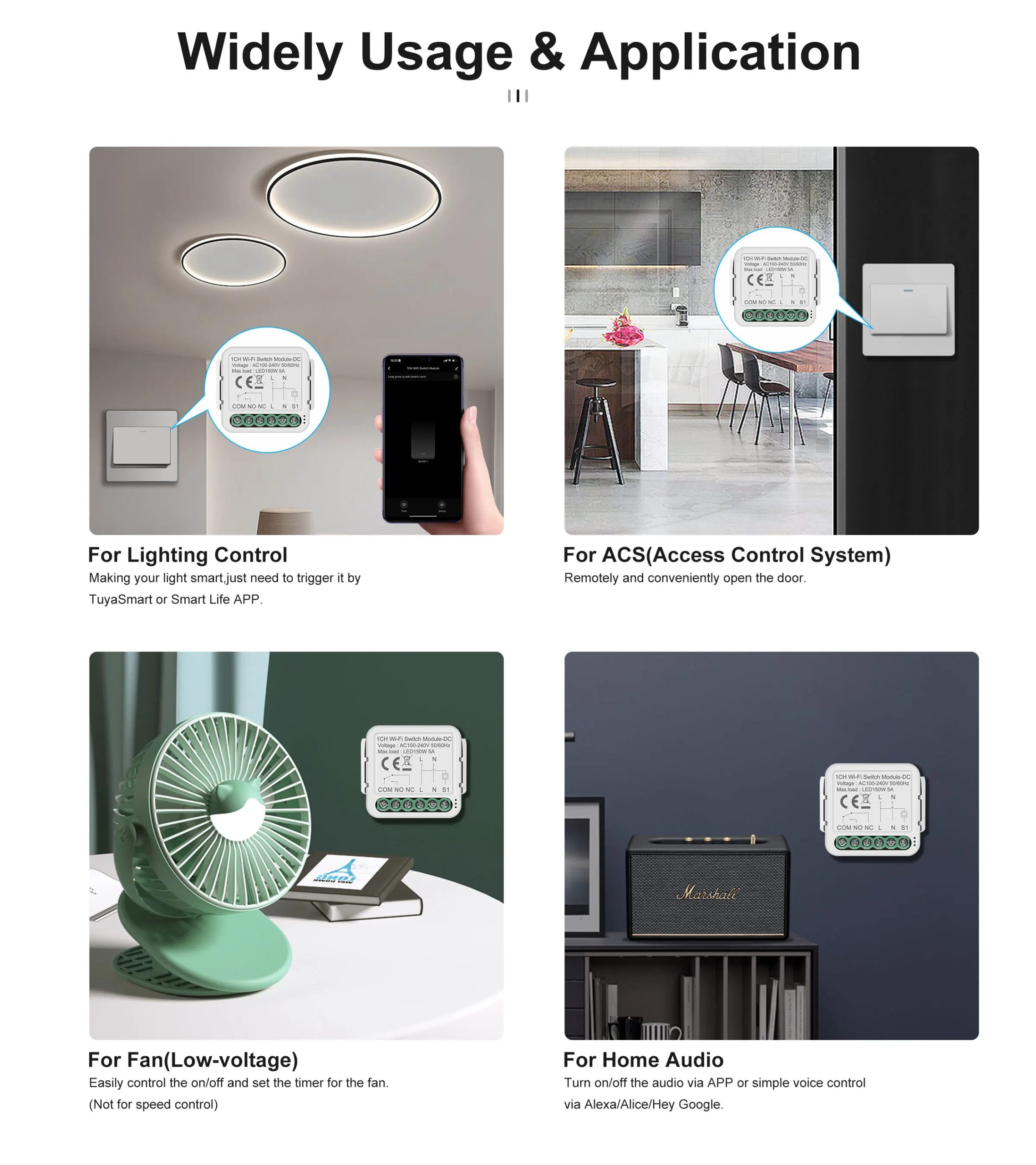

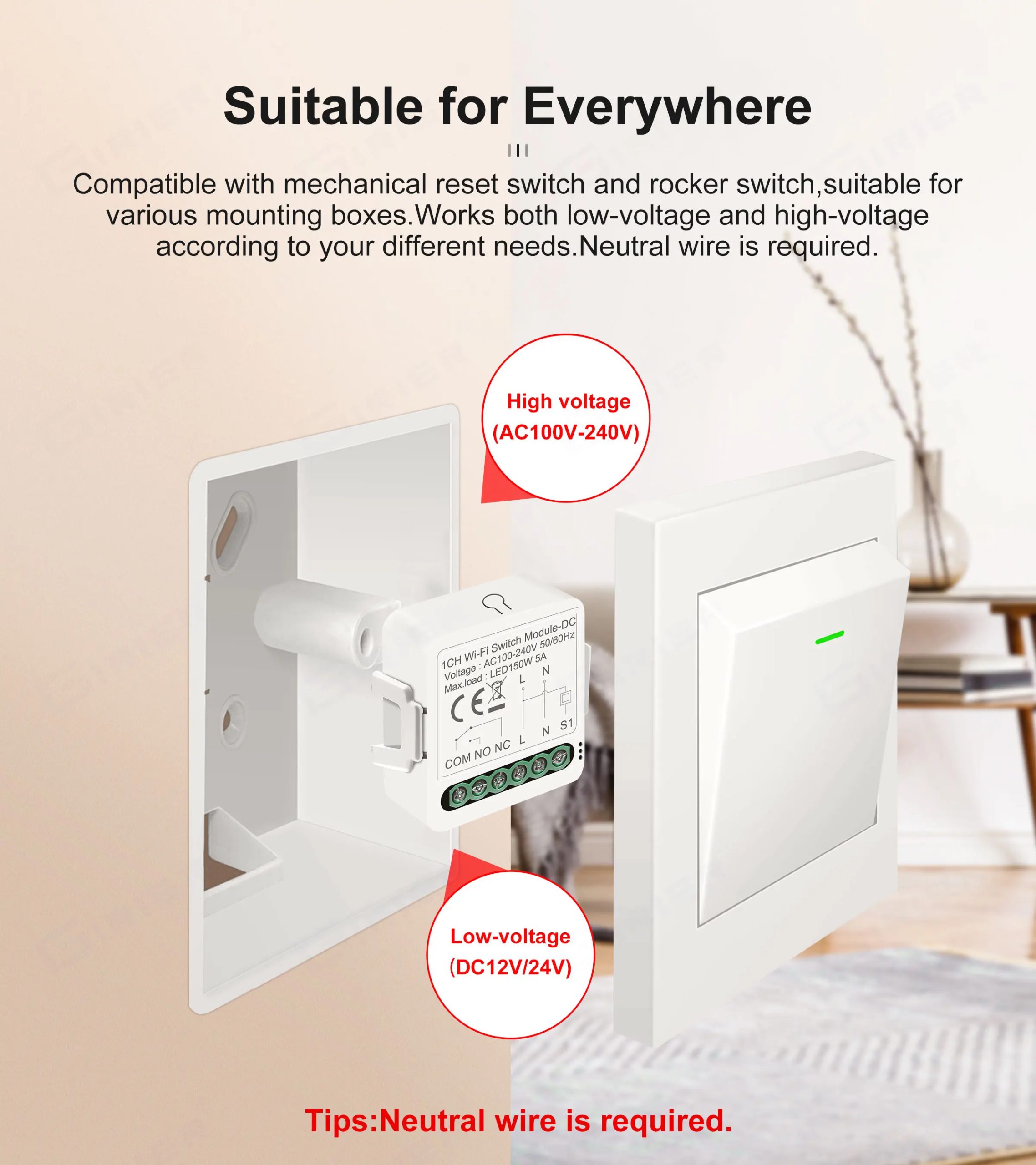

Suitable for Everywhere
Compatible with mechanical reset switch and rocker switch,suitable for various mounting boxes.
Works both low-voltage and high-voltage according to your different needs.
Neutral wire is required.
Control It From Anywhere
Turn on/off the devices effortlessly from anywhere after connected the module to TuyaSmart/Smart Life APP.
Convenient Voice Control
Through Alexa/Google Home Assistant/Alice,turn on/off the device effortlessly and more conveniently.
Timer Schedule
With flexible timer setting, you can trigger connected devices on time while saving energy.
Relay Status Function
With Relay Status Function, you won’t have to worry about power outages as you can set on/off/remember the last status of the smart dry contact as relay status.

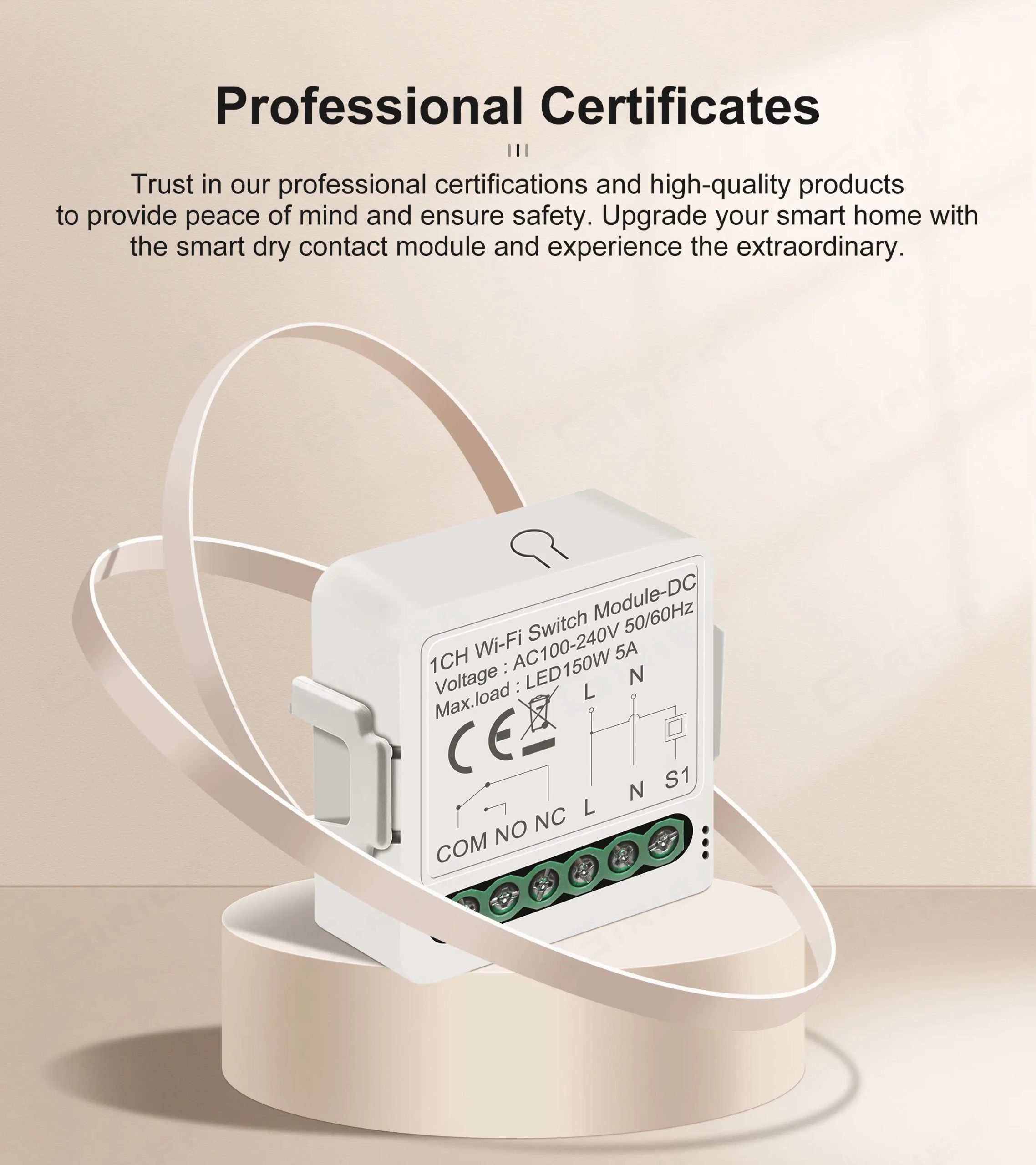

Professional Certificates
Trust in our professional certifications and high-quality products to provide peace of mind and ensure safety. Upgrade your smart home with the smart dry contact module and experience the extraordinary.
Sharing Function
Share the device to your family and friends,enjoying smart life together

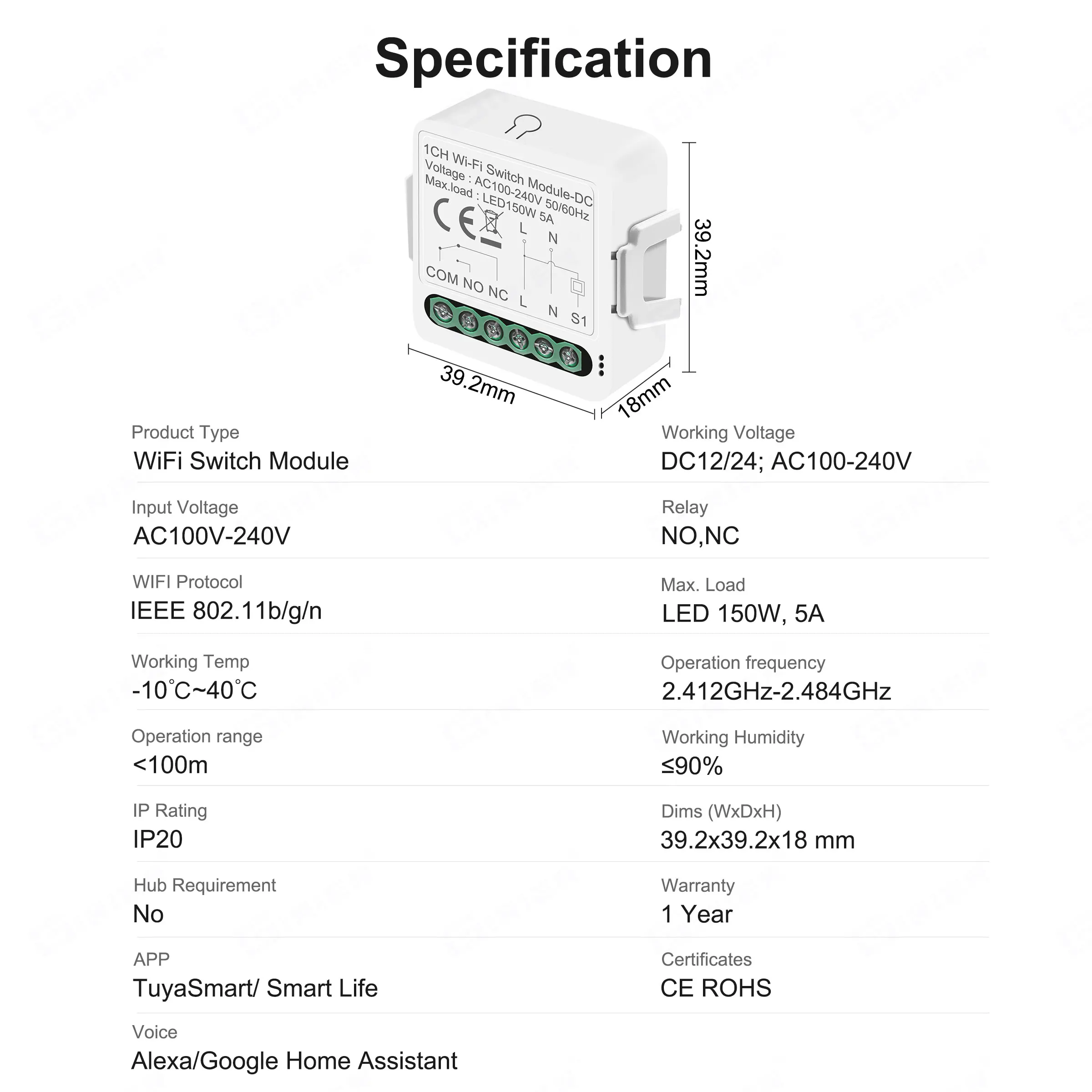

SPECIFICATION
FAQ
Q1: What should I do if I can’t configure the switch module?
a. Please check whether device is powered on.
b.Make sure your mobile and switch module are under the same 2.4 GHz WiFi network.
c.Whether it’s in good internet conditions.
d.Make sure the password entered in App is correct.
e.Make sure the wiring is correct.
Q2: What device can be connected to this dry contact switch module?
Most of your household electrical appliances can be,such as lamps, laundry machine, coffee maker, etc.
Q3: What happens if the WiFi goes off?
You can still control the device connected the switch module with your traditional switch and once WiFi is active again the device connected to module will connect automatically to your WiFi network.
Q4: What should l do if l change the WiFi network or change the password?
You have to re-connect our Wi-Fi switch module to the new Wi-Fi network accordingly as per the App User Manual.
Q5: How do l reset the device?
Power on/off device for 5 times until the indicator light flash.
Additional information
| Weight | 11 kg |
|---|---|
| Dimensions | 5 cm |
| Brand Name | GIRIER |
| Communication method | Wi-Fi |
| Hign-concerned Chemical | None |
| Origin | Mainland China |
| Compatibility | All Compatible |
| State of Assembly | Ready-to-Go |
| Camera Equipped | No |
| Certification | RoHS |
| Model Number | Smart Dry Contact Switch Module |
| Product Type | WiFi Switch Module |
| Relay | NO,NC |
| Working Voltage | AC100-240V 50/60Hz;DC12V/24V |
| Max. Load | LED 150W, 5A |
| Working Humidity | ≤90% |
| Operation Temp. | -10℃~ +40℃ |
| WIFI Protocol | IEEE 802.11b/g/n |
| Operation Frequency | 2.412GHz-2.484GHz |
| Operation Range | <100m |
| Dims (WxDxH) | 39.2×39.2×18 mm |
| IP Rating | IP20 |
| Warranty | 1 year |
| Certificates | CE, RoHS |
| APP | TuyaSmart/ Smart Life |
| Voice | Alexa/Google Home Assistant/Alice |
| Hub Requirement | No |
| Choice | yes |
| semi_Choice | yes |
60 Reviews For This Product
Related Products
-
Price range: $52.20 through $53.33
-
Price range: $13.60 through $44.30
-
Price range: $6.82 through $19.97
-
Price range: $35.32 through $38.93
-
Price range: $66.69 through $152.48
-
Price range: $9.46 through $19.02 -
Price range: $9.14 through $19.80
-
Price range: $14.29 through $20.24 -
Price range: $13.53 through $19.48
by F***o
Possibility of installing in current continues and alternates the output.
by С***ч
Took it to turn on the light. At the same time tested whether it is possible to put on a gate and gate with an electromechanical lock. Works with the specified setting.
by J***s
Impeccable. Fast and compliant sending
by T***z
Great purchase, works perfectly. a really good product
by G***a
Fast shipping, fully functional item, easy setup.
by A***n
Works well. I thought I also did the voltage conversion from 110v to 24v but it is not so a separate voltage transformer is required
by o***r
Everything was great, gladly again
by J***e
A little weak range but does the work very well I am super happy! ! ! 😊 Thank you!
by F***o
Fast shipping. Perfect conditions arrived. Easy to install, works top!
by Customer
Perfect!
by A***z
excellent product
by J***e
A little weak range but it does the work very well! ! 😎 perfect for a gate or a garage door thank you 🙂
by M***o
Perfect. Connected to the Gateway Zegbee in 30 seconds. He is recognized by the Tuya app and works perfectly. I use it to remotely control the ignition of the boiler.
by b***a
THE PRODUCT HAS ARRIVED 2 GG IN ADVANCE. IT WAS PROVED AND WORKS PERFECTLY. FOR NOW I AM SATISFIED AND CONTACTED CLEAN MANAGED BY HIS APP SMART LIFE IS REALLY A FIGATE. USE THE CLEAN CONTACT TO MANAGE THE SIGNAL OF A BUTTON THAT OPENS THE DIIGRECT GATE FROM REMOTE. GOOD PRODUCT COUNCIL FOR NOW
by v***r
Very good product for now.
by M***o
Everything is perfect
by T***o
Compatible and functional
by J***o
Perfect, it suits my needs.
by R***n
Good quality of the product and everything perfect until it arrives in Spain and the ecoscooperative agency takes care of its distribution, the package arrives 20 days late, as always.
by V***m
Thanksthanksthanksthanksthanksthanksthanksthanksthanksthanksthanksthanksthanksthanksthanksthanksthanksthanks
by J***A
Very good.
by m***i
I’m testing it
by s***s
Very good
by Customer

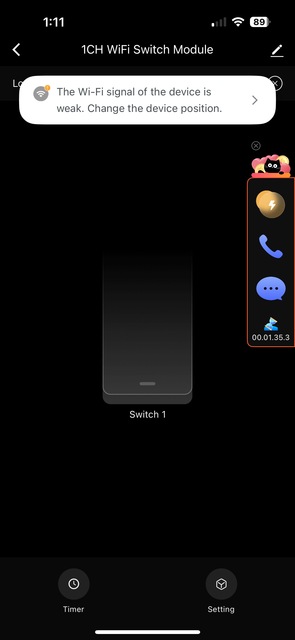

The device works fine but the wifi signal is very weak. Less than two meters from the wifi router, the signal is at the limit. I have no problem with wifi coverage for other iot devices. It’s a shame because the product looks compact. Due to the poor wifi device performancei, the device is useless for me.
by r***o
Works great I recommend it
by Customer
I wanted to test the switch option, it complies perfectly. Had behavior doubt, if eenua wifi/ cable priority. Always send the last order be wifi or wiring.
by F***r
Fast delivery only Bmol, not French in the settings
by I***z
Compact. Didn’t install yet
by s***a
It arrived very quickly, 100% recommended, now I have to try them.
by v***r
Perfect, fast delivery
by G***g
Reset switch and timed off switch does not seem to work from iphone, otherwise it is a nice product.
by z***s
super
by С***в
Everything is fine, works well, from the phone and through Alice
by M***i
Works perfectly and very easy to program
by n***e
Ottimo
by B***a
Excellent for opening the garage
by J***m
It works very well 🙂
by v***o
ottimo
by F***u

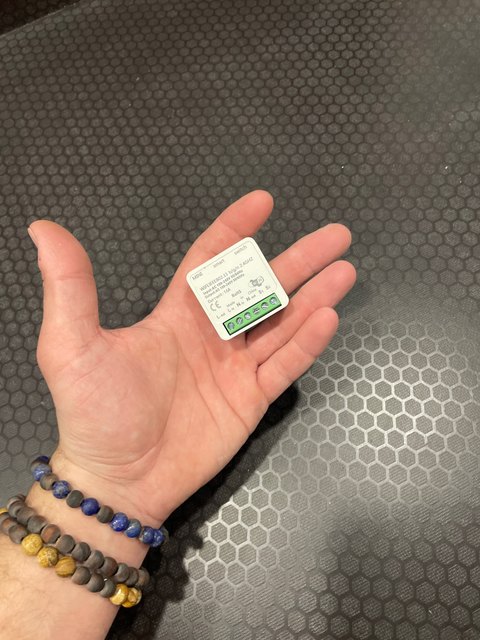

Looks good, small enough to fit in a regular dose. Not tested yet.
by Customer
Delivered quickly, solid unit. Installed and it works exactly how I wanted to use it.
by A***s
Fast delivery. Due to ordering wifi instead of zigbee, I can’t say anything about the relay’s operation.
by G***s
I use it to order a gate. The Tuya app works very well. The case is compact. I recommend.
by А***к
👍
by Customer
Ok
by C***s
RAS works well.
by v***r
Perfect. Nothing to say.
by m***m
All perfect
by A***a
Great as described
by A***a
Great, good product, it works perfectly, it syncs very quickly with Smart Life. Recommended seller 100×100
by s***a
a great item simple to assemble
by T***s
Worked perfectly
by Customer
Everything OK
by P***o
Everything ok, product as requested, advice
by P***k
Everything’s fine
by j***r
Everything perfect according to description. Very well.
by q***s
gut
by Customer
Works well.
by J***D
Hello, works very well for my remote switch to turn on the lamps. Be careful if you plug it in direct there is only 150 w.
by k***r

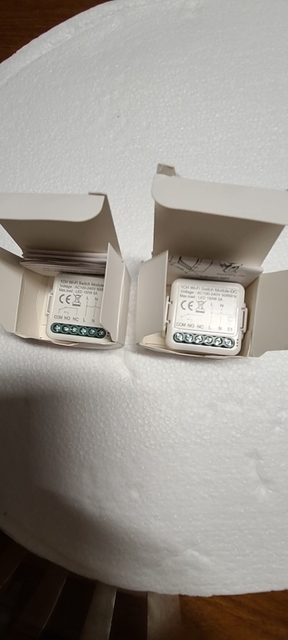

Already the second one. I use to drive in the garage and the entrance gate. I recommend.
