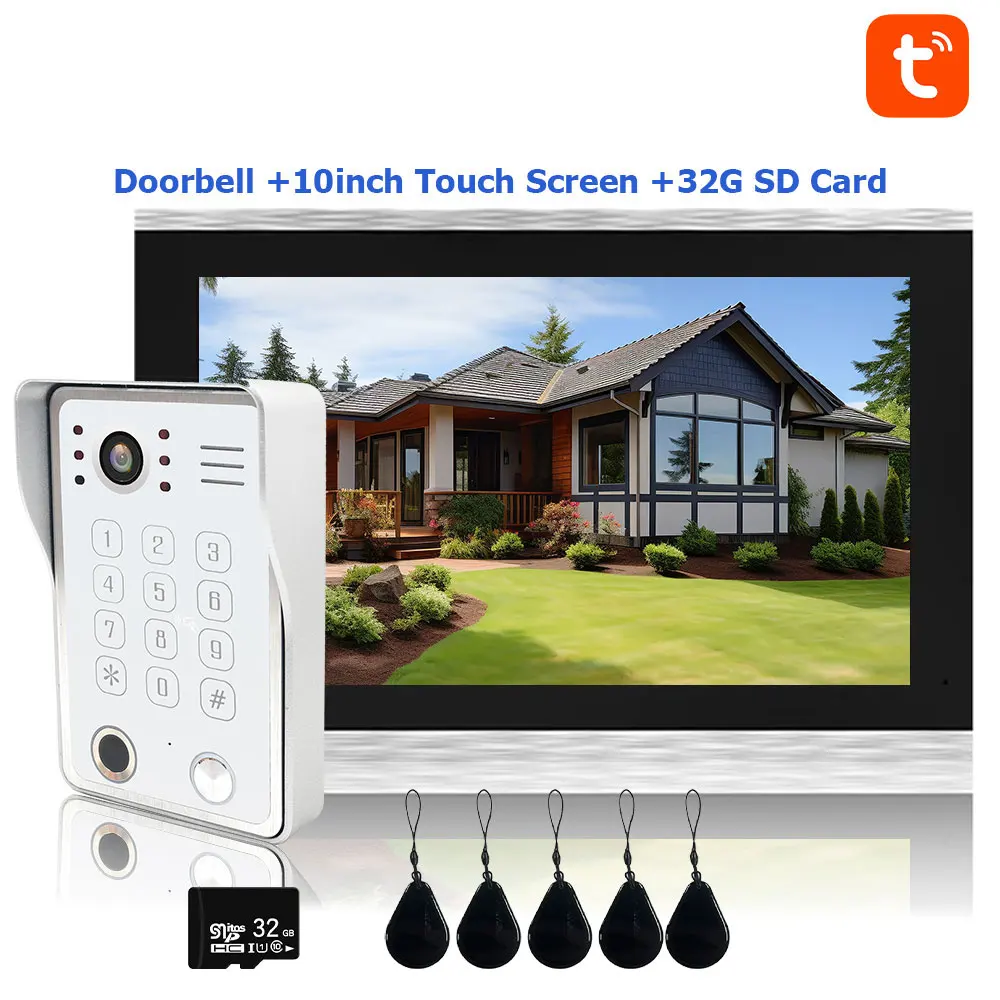

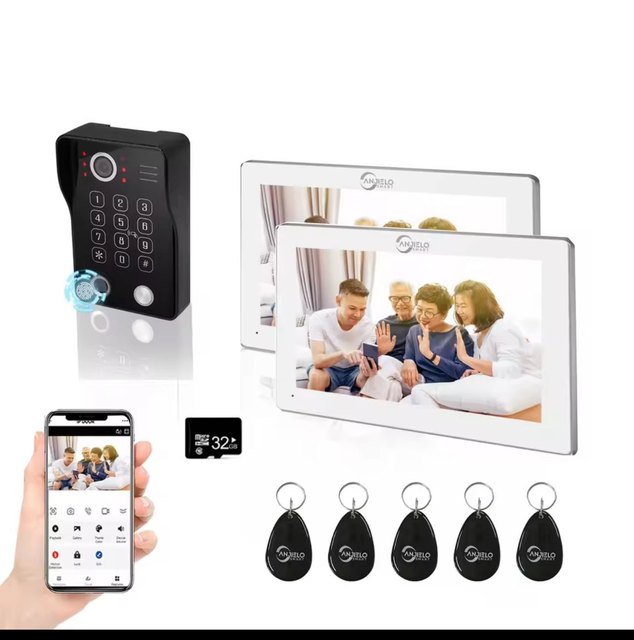

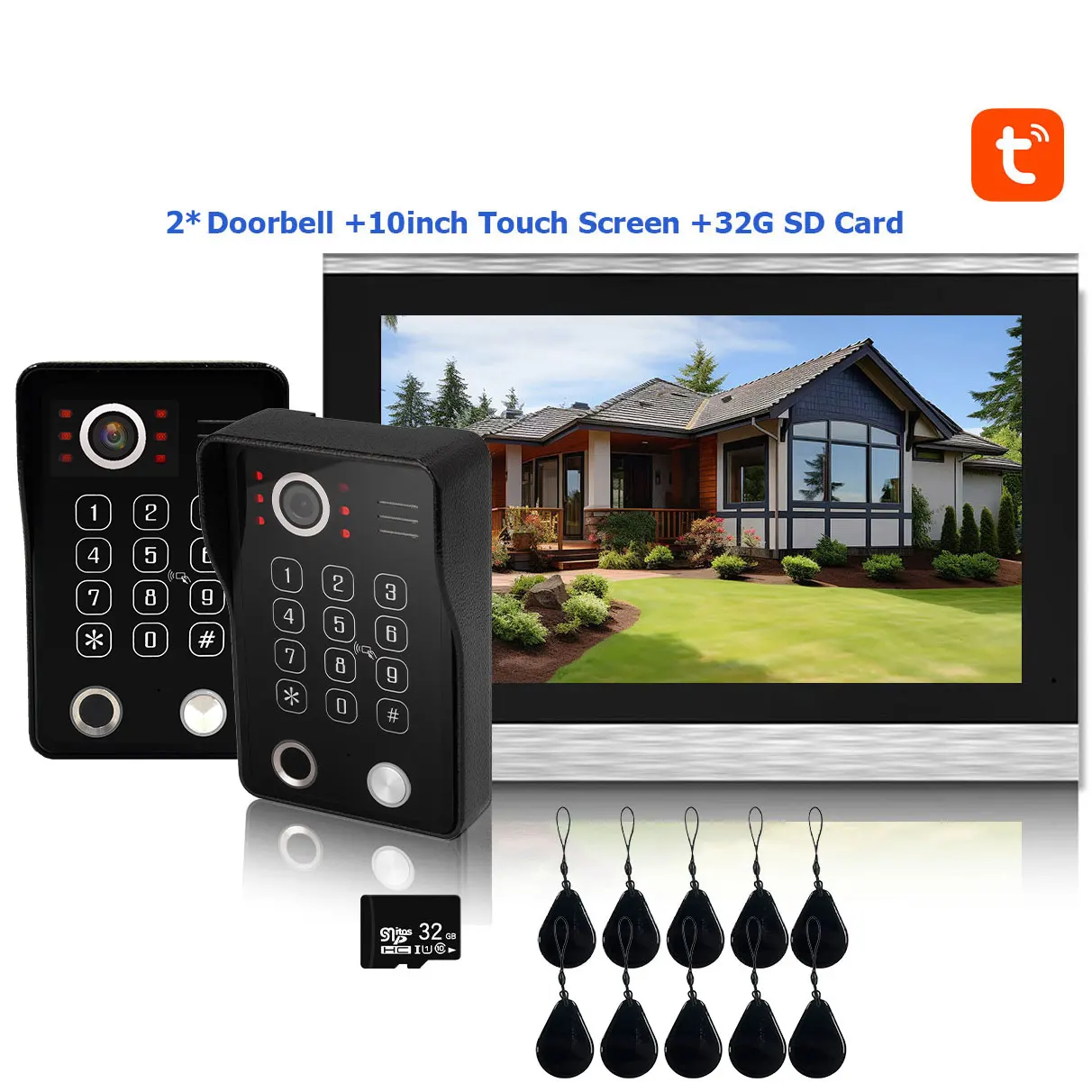

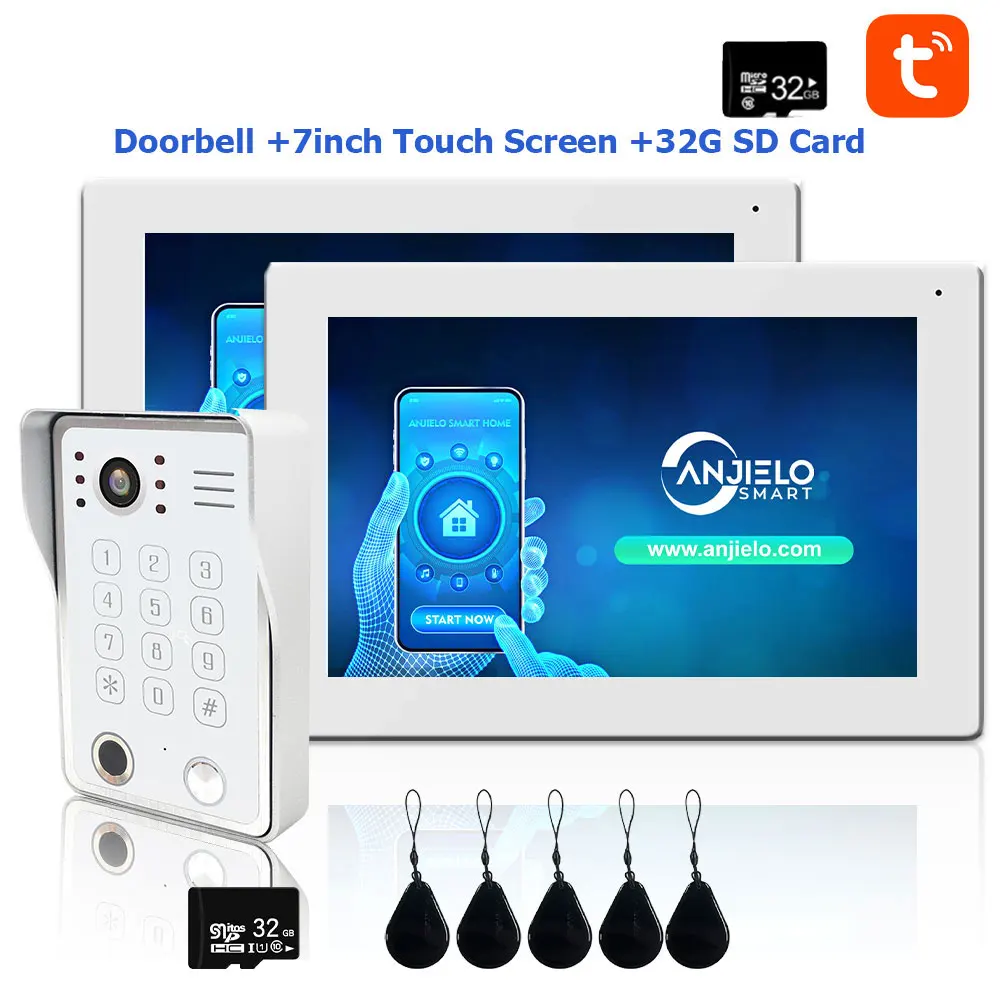

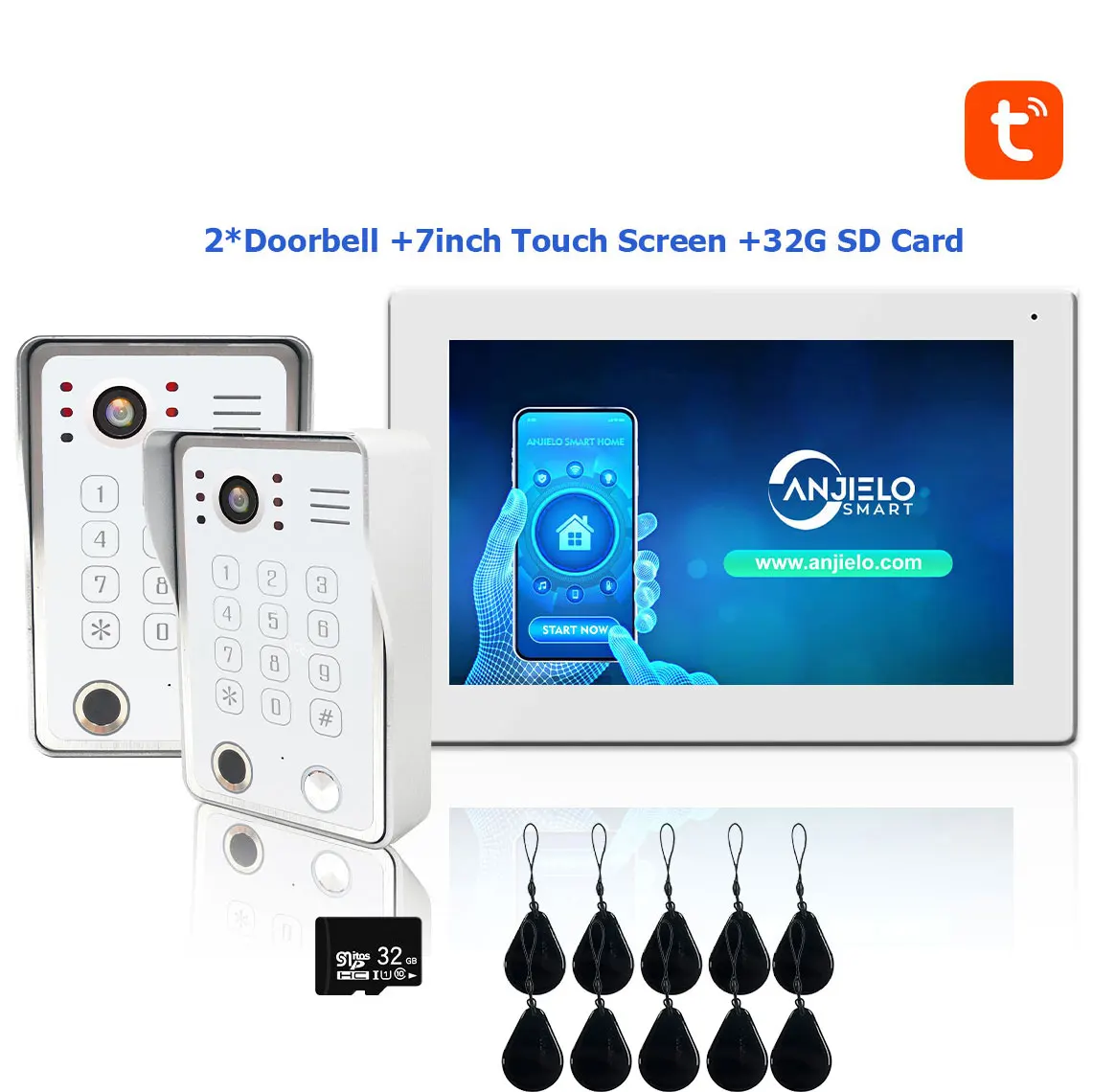

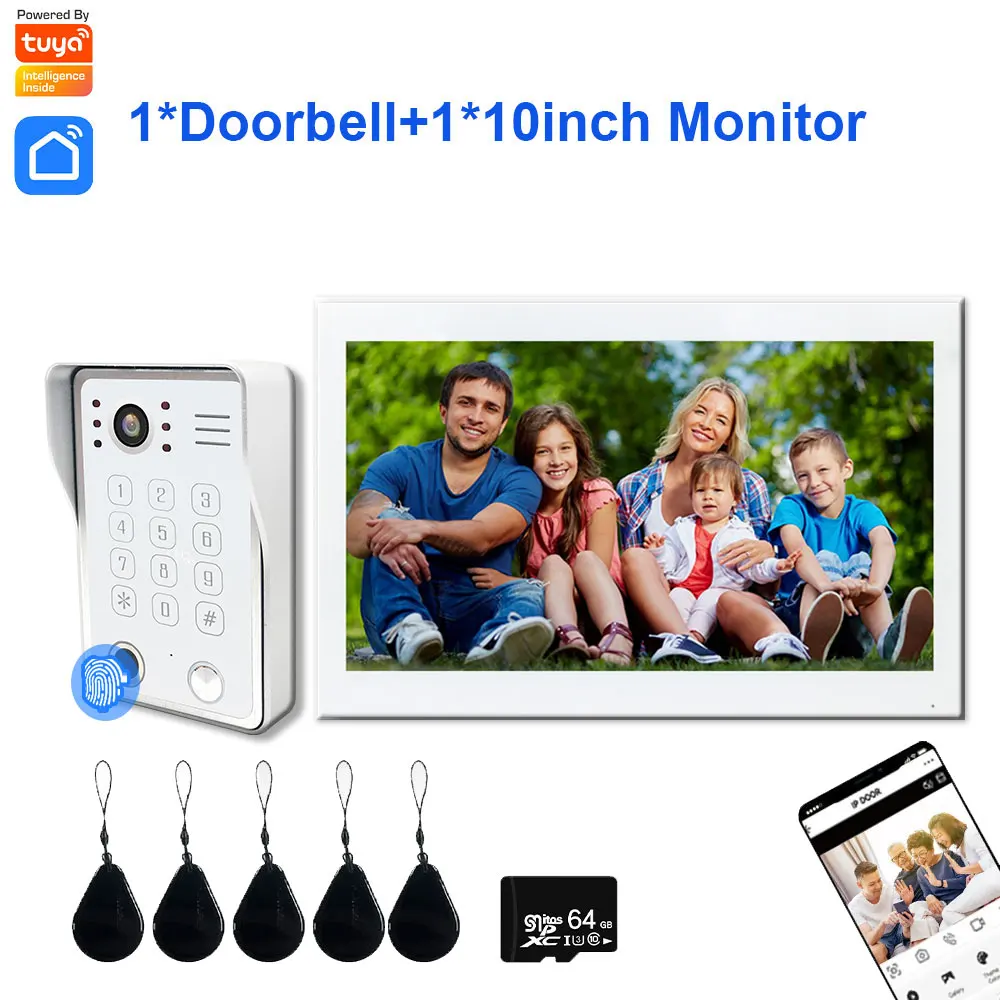

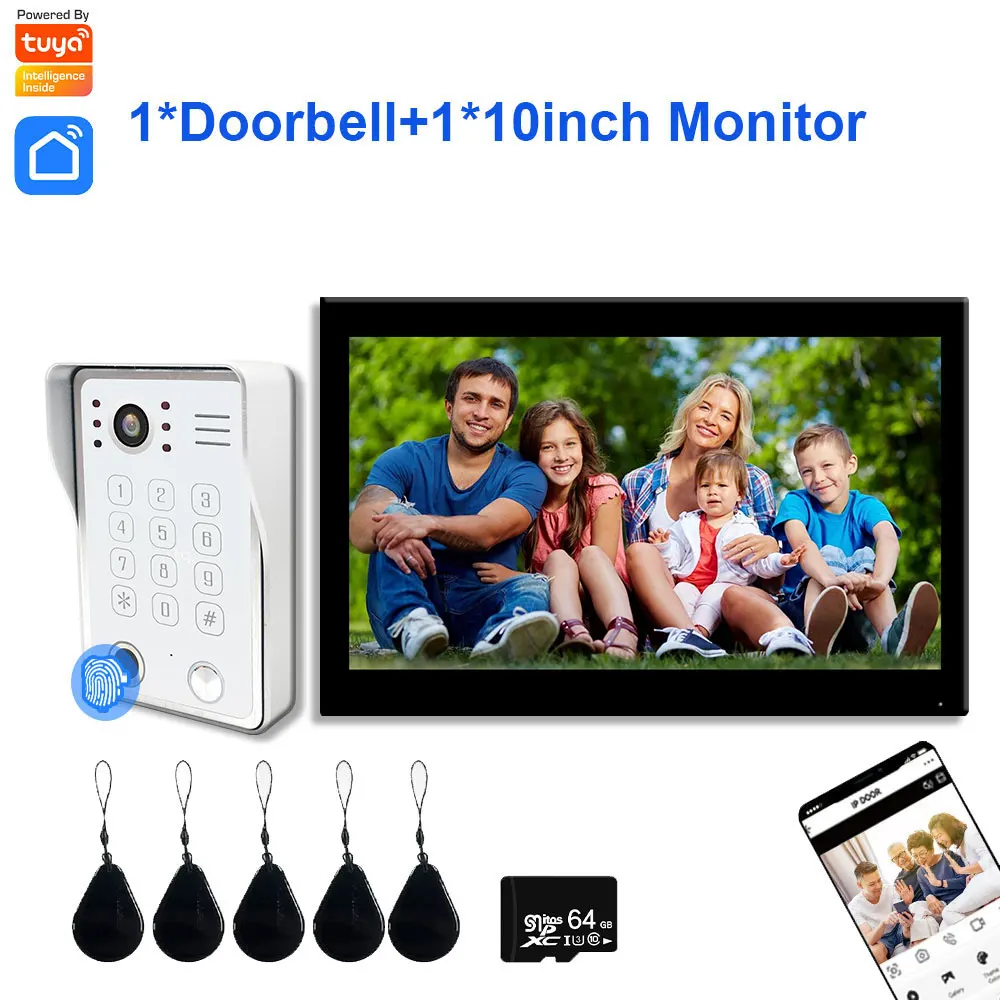

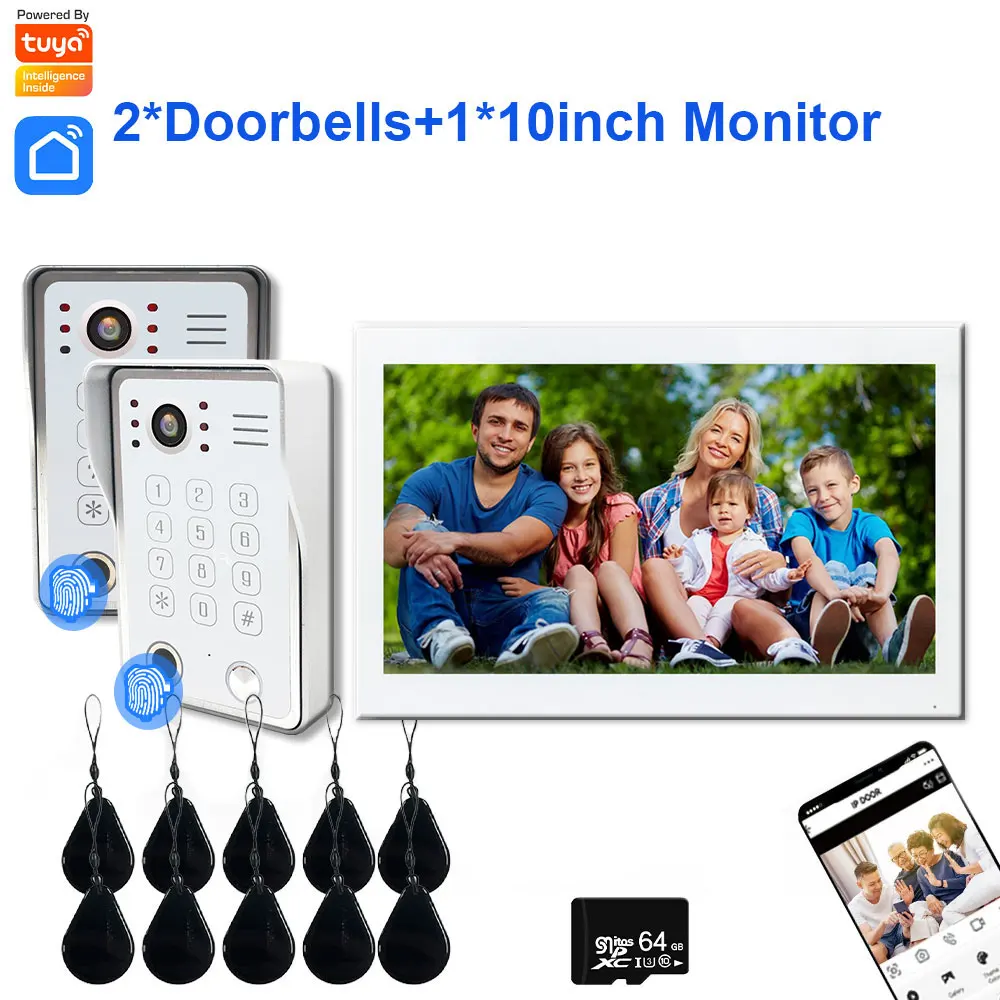

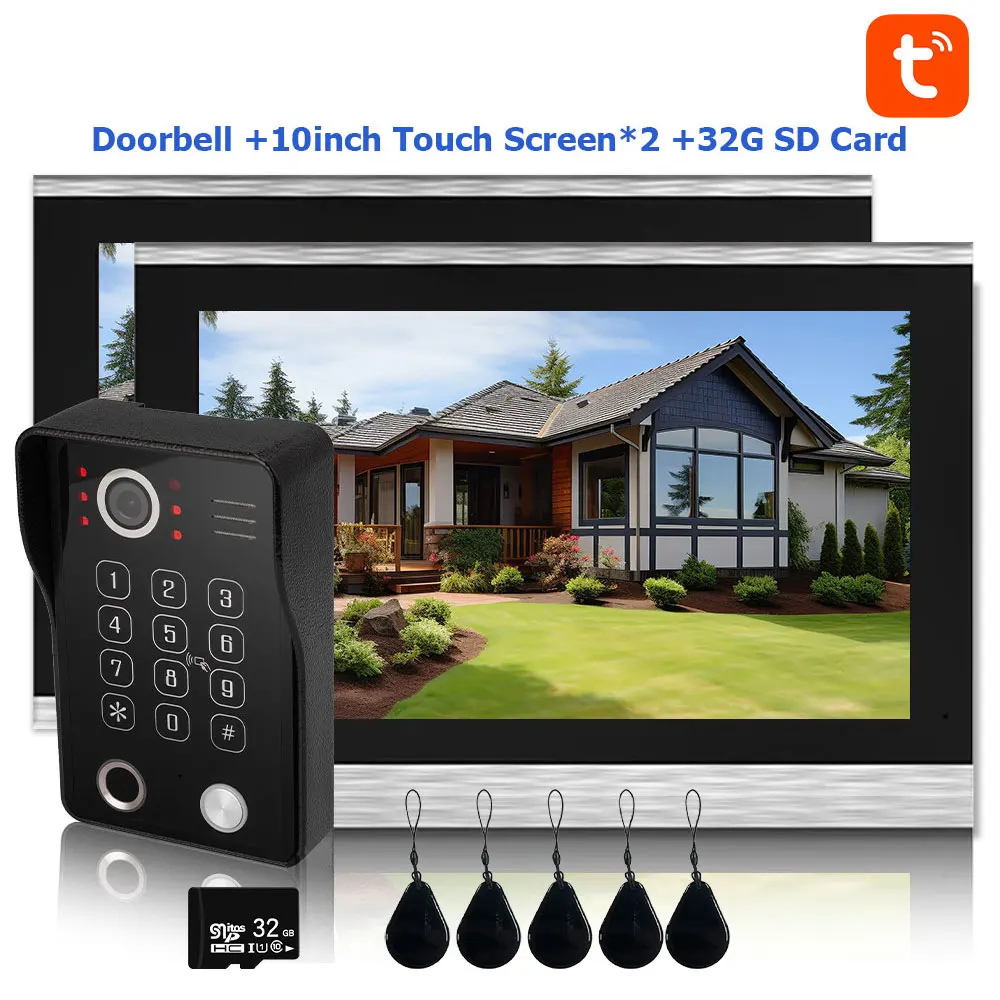

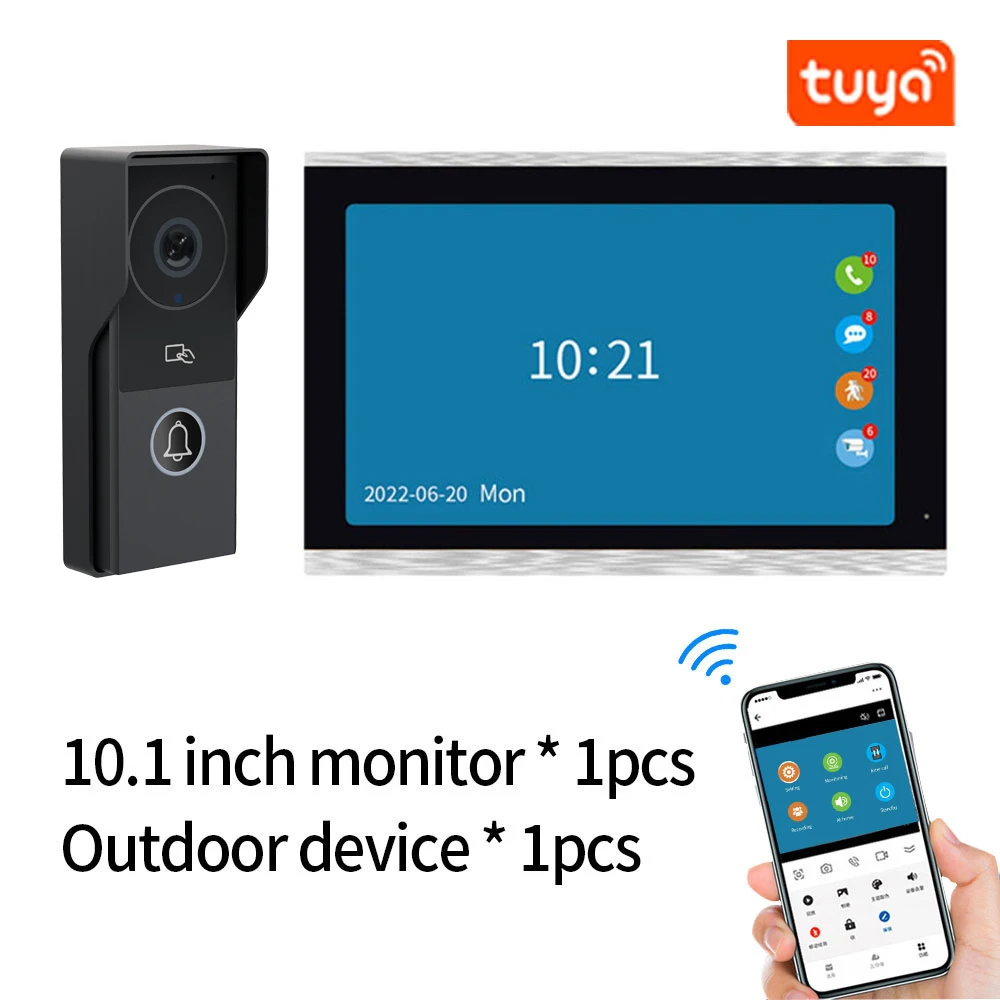

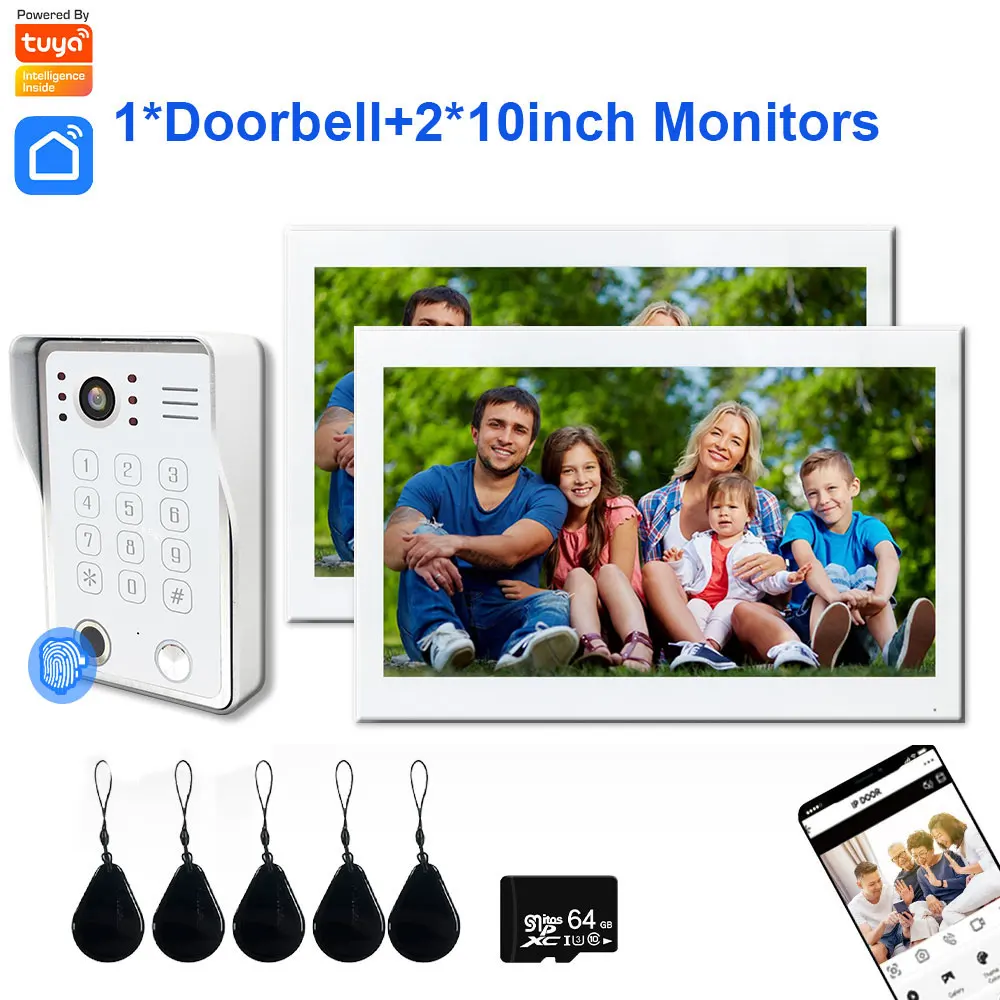

Fingerprint 5 in 1 Unlock Wifi Doorbell Video Intercom System for Home Doorphone Tuya Smart 1080P Monitor Security Protect
Price range: 12,976.13₽ through 23,055.60₽ (-25%)
Notice:
Our Product Just Works Well With Our Own Intercom System. At Present. We Could Not Guarantee It Could Be Compatible With Other Brand Indoor Monitor/Outdoor Camera. If You Need To Connect to the Other System, Please Contact Us For Technical Support Before Buying.
5 in 1 Unlock
This device has various unlocking methods. You can unlock by password, monitor, IC card, APP and screen. It is very convenient and flexible.
Fingerprint Unlocking
The outdoor hood is equipped with fingerprint capability and supports up to 200 fingerprints. Unlocking and access more convenient.
Phone unlocking
If you forget to bring your key when you go out, you can use your phone to unlock it. With your phone, you can operate all the functions on the screen, making future technology extremely convenient
See More People:
About Wifi connection:
Please note the wifi video intercom system not mean it’s don’t need any cable. The monitor support WIFI network,but the indoor monitor and doorbell is Wired connect.
The doorbell and camera can be extended with RVV4/Cat5/Cat6/RG59 wire, Network cables. The maximum distance can exceed 300ft.
The indoor monitor and doorbell wired connections, works stably. You don’t need to worry about the network signal anymore.
Product size

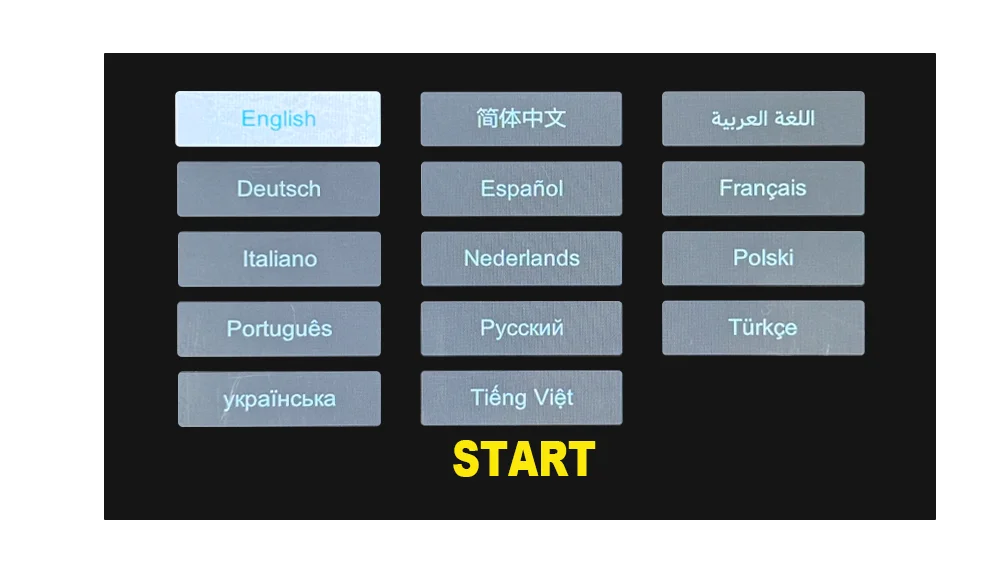

15 Language:
It Supports Chinese, English, Russian, German, French, Spanish, Italian, Polish, Portuguese, Turkish, Arabic, Ukrainian, Dutch.
Express delivery or visitors will not miss:
When someone rings the doorbell, we can hear the doorbell, talk to the guests outside through our phone or screen, and even have a full conversation and unlock with our phone

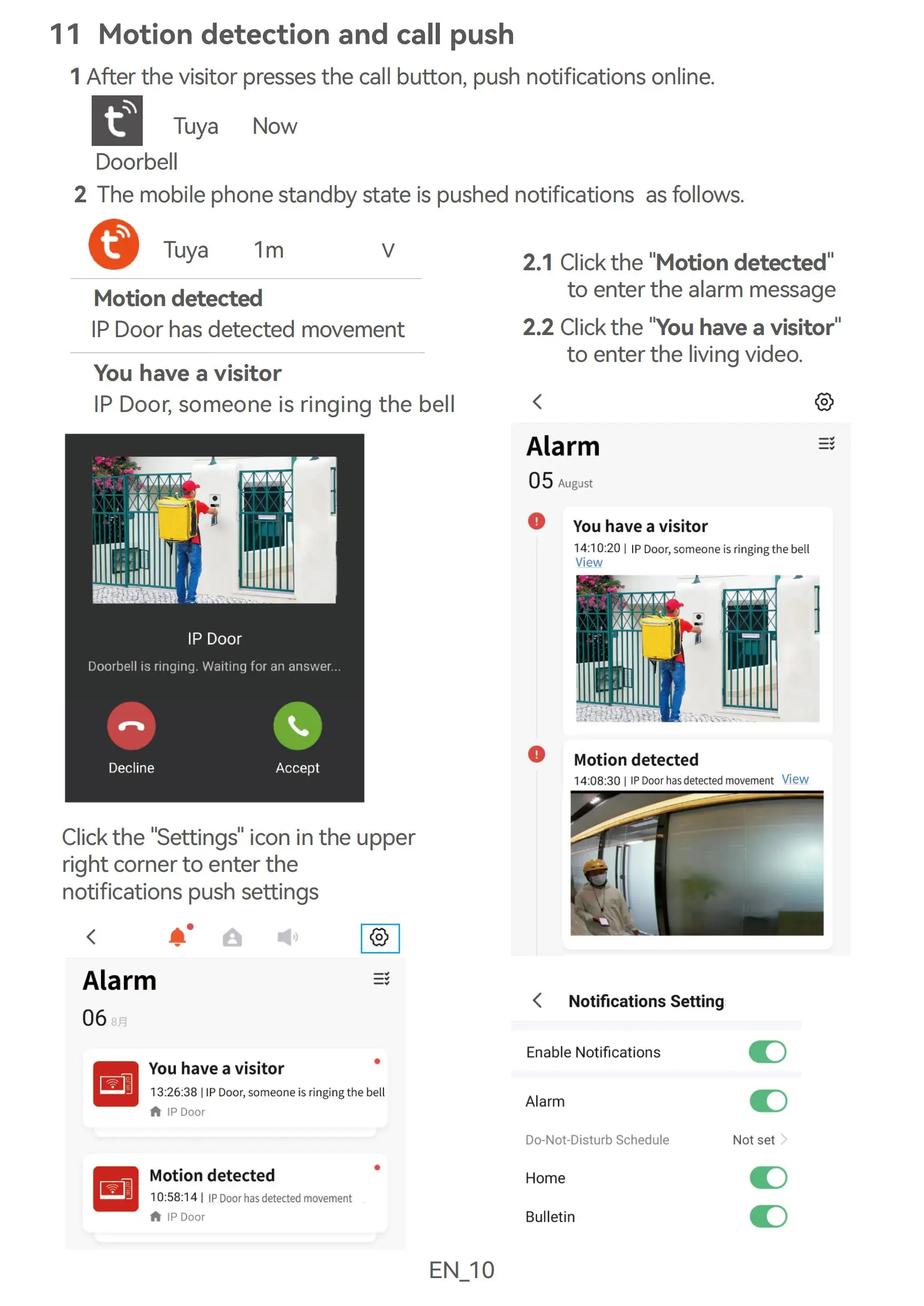

Automatic recording
When visitors press the doorbell or motion detection is triggered, the doorbell camera will automatically record videos or snapshots and save them to the additional Micro SD card to protect your home every day.
TWO WAY AUDIO
Speak directly to anyone who approaches your front door

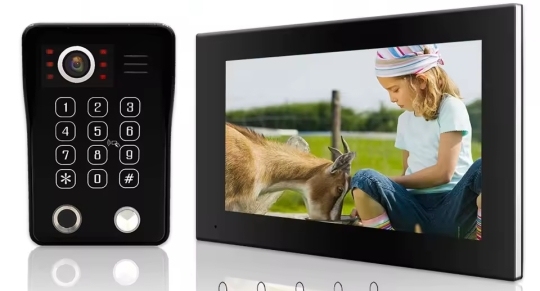

AHD 1080P OUTDOORFINGERPRINT DOORBELL
-
1. Waterproof IP65
-
2. View-angle 150 degree
-
3. Night Vision
-
4. Support Connect With Exit button
-
5. Access Control Function Optional.Support RFID and Password Unlockand Fingerprint
Product Features:
-
2.0MP Camera, 148 degrees wide view angle.
-
2-way communication between indoor and outdoor unit. Support 2 way communication between monitors.
-
Support iOS & Android smart phone with Tuya Smart APP, When somebody call at outdoor, your monitor and smartphone will ring at the same time.
-
Motion Detect, When motion detect is triggered,the camera will recording or capture a picture,even though nobody press the doorbell.
-
The indoor unit has an external 32G SD card (supports photo or video).
-
Note: 4 wires cable connection doorbell and monitor, The monitor support WIFI network, but the indoor monitor and doorbell is Wired.
-
Automatic Recording
-
1080P camera with 148º wide view angle, Visitors at the door can be seen clearly.
-
Camera built-in microphone and speaker, When visitors press the doorbell or motion detect is triggered, doorbell camera will Automatically record videos or snapshot pictures and save them in monitor micro SD card.
Features
-
Wide angle camera
-
Aluminum Alloy Case;IP65
-
IR LED offset lighting can obtain better evening viewing
-
Unique waterproof ,dustproof ,anti-thunderstorm design
-
Call indoor monitor ,video intercom
-
Support connect with Exit button , With IR-CUT
-
With password ,fingerprit & IC card unlock function, capacity 200PCS
-
Support switch signal from 1080P-720P-CVBS
Specifications
-
Model 94218 – AHD1080
-
Camera Sensor 1 / 2.7″ CMOS
-
Denfinition 1080P
-
Lens 3.2mm
-
View angle 148°
-
LEDs for night LED IR LEDs（120°）
-
Power consumption 200mA max.
-
Power Supply Supplied from indoor unit
-
Operating Temp. -40℃~+50℃
-
Installation Surface mount
-
Size 137mm*85.5mm*23.5mm
-
Accessory Rain Cover
Add fingerprint:
Step 1. Press SET button, please put your finger on the fingerprint module, a long BEEP means successful, please add another finger.
Step 2. Press SET button when you complete the fingerprint addition.
Tips:
The addition time is 20s, after 20s you will hear a long BEEP, if you need to add other fingers, please try step 1 again.
Add IC card:
Step 1. Press SET button, please put the IC card on the recognition module, a long BEEP means successful, please add another IC card.
Step 2. Press SET button when you complete the IC card addition.
Tips:
The addition time is 20s, after 20s you will hear a long BEEP, if you need to add other IC cards, please try step 1 again.

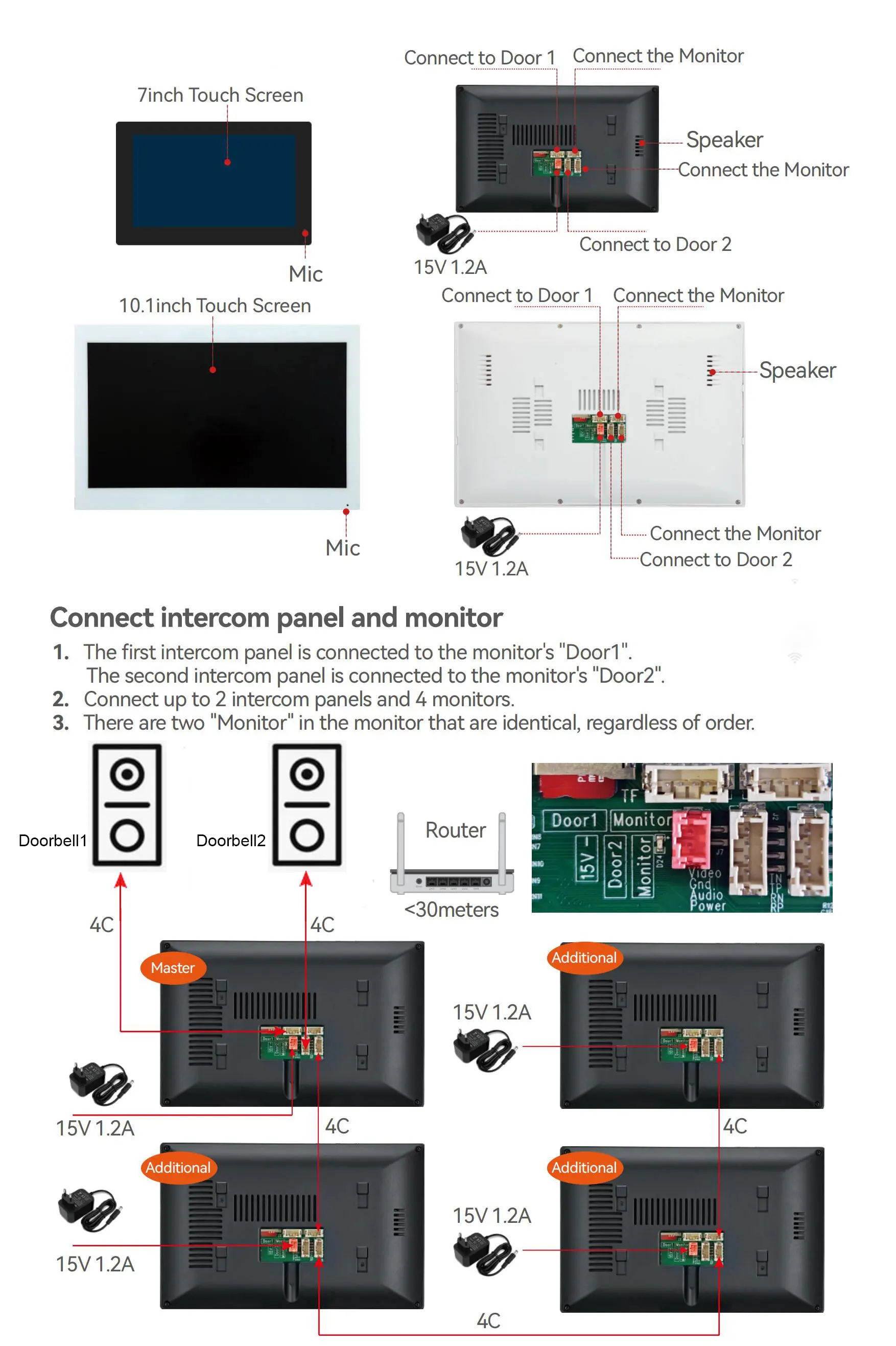

WIRING DIAGRAM
Additional information
| Weight | 10 kg |
|---|---|
| Dimensions | 10 cm |
| Brand Name | anjielosmart |
| Connection Method | Wired |
| Camera Sensor type | CMOS |
| High-concerned chemical | None |
| Origin | Mainland China |
| Answering Mode | Hands-free |
| Display Screen Size(inch) | 10 |
| Display Screen Type | Color Touch Screen |
| Zone Input | 4 |
| Kit Configuration | One to Two video doorphone |
| Access Control | Fingerprint Recognition |
| Type | intercom system |
| Waterproof | Yes |
| Material | Metal |
| Smart home platform | Tuya |
| IP Camera Interface | No |
| Samrt Home Interface | Yes |
| Installation | Wall Mounting |
| Resolution | 1080p |
| Communication Interface | WireLess |
| Plug Type | UK Plug |
| Certification | CE |
| Power | DC15V |
| Sensor Size(Inch) | 1/3 |
| Camera | COLOR |
| Power (W) | 220v |
| Viewing Angle (°) | 148 |
| Doorbell | Yes |
| Technology | DIGITAL |
| Access control function | Monitor |
59 Reviews For This Product
Related Products
-
Price range: 2,775.79₽ through 3,720.44₽
-
Price range: 1,908.23₽ through 2,470.71₽
-
Price range: 4,614.13₽ through 5,325.55₽
-
Price range: 3,832.80₽ through 4,512.87₽
-
Price range: 2,321.11₽ through 2,354.43₽
-
Price range: 2,313.27₽ through 4,287.48₽
-
Price range: 1,644.96₽ through 1,667.17₽ -
Price range: 620.62₽ through 961.63₽
by A***v
excellent product like in description the image very clear the seller was nice and answered very fast for any question I recommend 👌
by T***k
Very nice system. working good. Good communication with seller.
by Customer
Product installed and I love it
by Customer
Received within the specified time frame. Tested with the connection, everything works, connected to the phone, the prints work. I’m Satisfied
by Customer
I like this product very much, thank you seller
by Customer
The view is very clear, the picture is very timely, the connection is stable, the network status is good
by D***i
Very often freezes and reboots. Especially after I go to see someone in motion filmed, the application freezes, after rebooting on the outer panel says “we are not at home”, and the call does not go inside. You have to demolish everything to the factory settings and reinstall everything ((((. The memory card may still come away, you have to pull it out and insert it back.((( The camera outside phonite and the speaker wheezes. I’m not satisfied ((( In general, some problems ((( P.S. In the photo it is hard to see, but constantly “noises” are running on the screen from the camera
by Customer
It looks like a high-quality video intercom device and certainly with many useful functions to de-feed the use will be checked as soon as the ability to connect
by m***a
good product. I like it. better than the previous one..I recommend it
by o***e
Excellent product. Working and connect to the Internet.
by Customer
good items
by m***i
Received quickly and tested for the moment nothing to report Very satisfied
by Customer
Seller not respond to customer for some support regarding the items
by Customer
.
by K***N

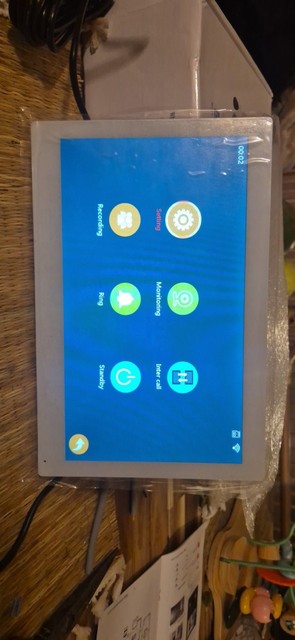

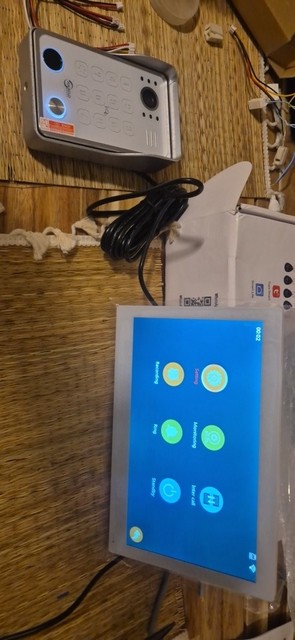

The goods arrived quickly in 11 days. The monitor is connected, everything works.
by L***i
Ok
by r***r
Received on time, but no instructions in French. Where can I find the assembly and programming notes?
by Customer
The function compatibility is very good, there is no jamming, and the outdoor camera is very clear. The big brand is trustworthy. The after-sales service is very good and patiently answers questions. You can place an order with confidence
by Customer
Good service, good products
by T***k

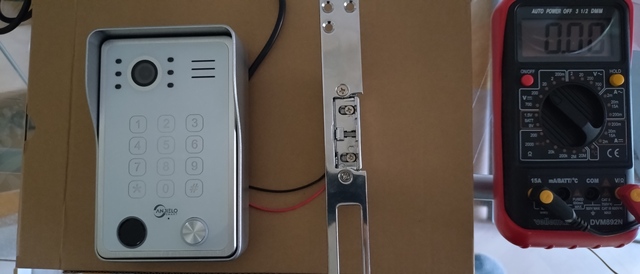

Great. Very good communication, fast shipping and delivery. So far only tested without connecting the lock. It seems that everything is fine and that it is a quality product.
by Customer
The response is sensitive, the video is clear and each mobile object will be recorded.
by A***e
I have NEVER received the package. The carrier indicates that they have delivered to an address over 30km away from me. He therefore made a mistake: despite this proof: they refuse to refund me. I do not recommend. FUIEZ! ! !
by s***n
Very worth a product
by M***i
Received, not yet test. But i have noticed on the installation instructions that i have avoid to install the outdoor unit on the sunshine or run, how comes 😖 🙁 😞 😞
by T***k
everything’s great. looks good. not connected yet. fast delivery. I recommend.
by Customer
Excellent product, exactly as described. Easy to install and works perfectly. One of the screens was damaged during shipping, but the seller was cooperative throughout the entire process and replaced the broken screen at no extra cost. Highly recommended.
by W***k
Everything is ok, I recommend.
by d***r
Hello, I have received the package with all the items. Everything works perfectly and the whole set is of good quality, quite easy to set up! The only problem is related to the electric lock: the electric pulse to deactivate the electric lock does not last long enough (1/10 second)! ! ! How can we set a longer pulse of 2 or 3 seconds to release the electric strike during this time? Thank you
by r***i
The product looks beautiful and impressive But unfortunately after two months we got stuck in customs And I paid customs the product does not work
by H***h
Fast shipping and excellent product
by M***l
Actually not the greatest… or easiest to use. So it supports tuya.. but only for camera feature and door unlock. All programming of pin codes, ley tags etc, has to be done with a ‘set’ button on the back of the pinpad which is very difficult to use and program.
by Customer
The order has arrived, thank you. 😍
by m***c
It looks very good. Thank you for the possibility of multiple access in the court: PIN code, fingerprint, or card + application control.
by E***v
The product was received by the time. Already installed. Everything working well. Quality of camera is good and wi-fi connection working well. Any call i can see in my phone and open the door. Thanks
by L***M
Product as described. Not installed yet but looks solid. I recommend.
by A***A
I highly recommend this store, the shipping is fast despite the announced delays, the package arrived early.
by Р***ч

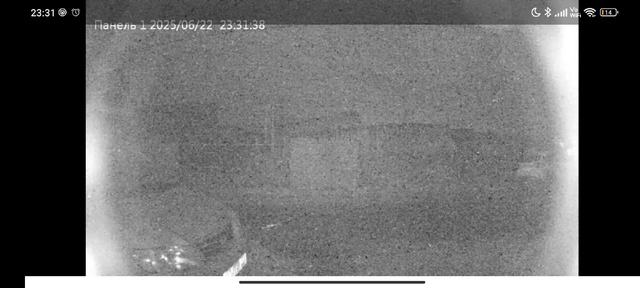

everything is fine, but at night you can’t see anything at all.
